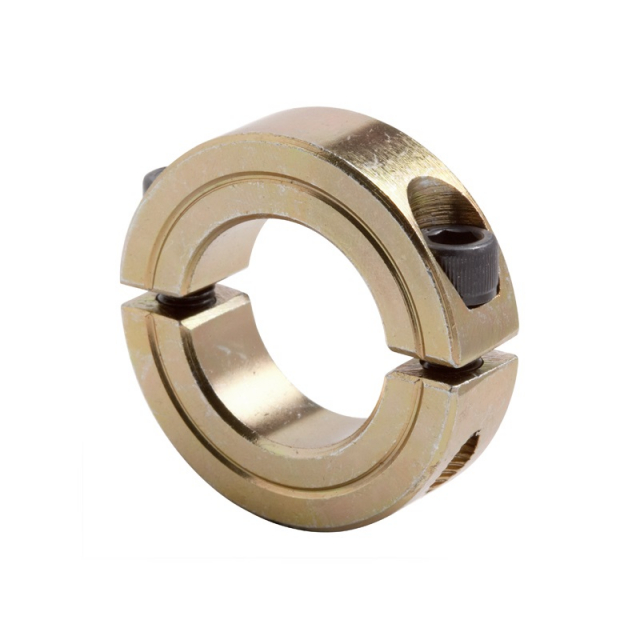

Buy Climax Metal CR2C-125, Clamping Collar, 1-1/4" Bore

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Bore Size:: Bore Size: 1-1/4"

Features:

Design fully engages the shaft without marring
Effective on hard and soft shafts
Easily installed where major disassembly would otherwise be required
Greater axial holding power than set screw or one-piece clamping collars

Yellow Zinc Dichromate Plated Steel Two-Piece Clamping Collar. Design fully engages the shaft without marring. Easily installed where major disassembly would otherwise be required. Greater axial holding power than set screw or one-piece clamping collars. Efective on hard & soft shafts.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Style	Two-Piece Clamp
Material	Steel, ASTM A108
Finish	Yellow Zinc Dichromate
Clamp Screw	Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 8-32 x 1/2
Recessed Screw	No
Bore Size	1-1/4"
O.D.	2-1/16"
Width	1/2"
Clamp Screw	8-32 x 3/4"
Aprox. Weight (oz)	4.22
Tolerance	+-0.003

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Style	Two-Piece Clamp
Material	Steel, ASTM A108
Finish	Yellow Zinc Dichromate
Clamp Screw	Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 8-32 x 1/2
Recessed Screw	No
Bore Size	1-1/4"
O.D.	2-1/16"
Width	1/2"
Clamp Screw	8-32 x 3/4"
Aprox. Weight (oz)	4.22
Tolerance	+-0.003

Note

Note: Please read description carefully. Do not base your order on the picture presented.
