C133E-187, Series C133 Locking Assembly 1.875" x 3.15"

Single-taper, self-centering design with mounting flange for use in through-bored components. Mounted component remains fixed axially during installation.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

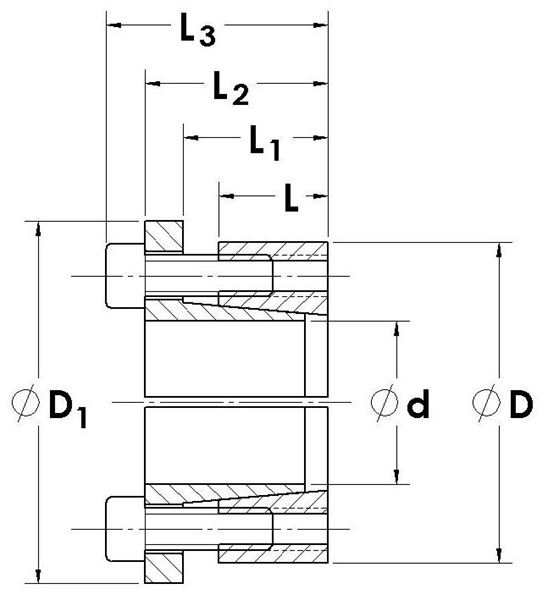

Shaft Size	1 7/8 in
d	1.875 in
D	3.150 in
D1	3.484 in
L	0.787 in
L1	1.043 in
L2	1.358 in
L3	1.673 in
M_t	1266 ft-lbs
F_ax	16206 lbs.F
P_s	29116 psi
P_h	17333 psi
D_N¹	4.728 in
Locking Screws Quantity	7
Locking Screws Size	M8 x 25
M_a-Locking Screws	30 ft-lbs
Hub Machining Tolerance	+.002 in
Shaft Machining Tolerance	-.002 in
Item Weight	2.50 lb

Product Details

Shaft Size	1 7/8 in
d	1.875 in
D	3.150 in
D1	3.484 in
L	0.787 in
L1	1.043 in
L2	1.358 in
L3	1.673 in
M_t	1266 ft-lbs
F_ax	16206 lbs.F
P_s	29116 psi
P_h	17333 psi
D_N¹	4.728 in
Locking Screws Quantity	7
Locking Screws Size	M8 x 25
M_a-Locking Screws	30 ft-lbs
Hub Machining Tolerance	+.002 in
Shaft Machining Tolerance	-.002 in
Item Weight	2.50 lb

Note

Note: Please read description carefully. Do not base your order on the picture presented.
