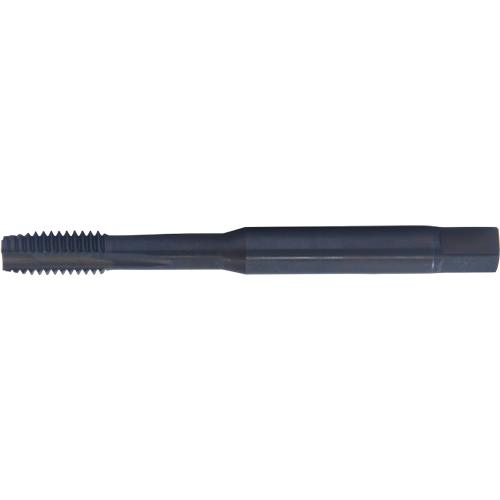

.1575" 6H Metric HP Spiral Point Stainless Steel Tap

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	PER-862SP
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	Metric
Thread Length	0.4331"
Thread Length (Metric)	11.00mm
Thread Pitch	0.7
Thread Size	M4
Thread Tolerance	6H
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS-E
Measurement System	Metric
Net Weight	7.241oz
Number of Flutes	3
Shank Configuration	Straight w/ Square
Standard	DIN/ASME
Surface Condition	Steam Oxide
Tap Blank Construction	DIN/ANSI
Tap Chamfer	Plug
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	M4x0.7
Dimensions
Diameter	0.1575"
Overall Length	2.4803"
Overall Length (Metric)	63.00mm
Shank Size	0.1680"
Shank Size (Metric)	4.27mm
Shank Square Length	0.2500"
Shank Square Length (Metric)	6.35mm
Shank Square Size	0.1310"
Shank Square Size (Metric)	3.33mm
Tap Neck Length	0.4330"
Application
Depth of Cut	2xD
Material Application	M: Stainless Steel, P: Steel
Operation Type	Thru Hole

Product Details

General
List Style Number	PER-862SP
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	Metric
Thread Length	0.4331"
Thread Length (Metric)	11.00mm
Thread Pitch	0.7
Thread Size	M4
Thread Tolerance	6H
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS-E
Measurement System	Metric
Net Weight	7.241oz
Number of Flutes	3
Shank Configuration	Straight w/ Square
Standard	DIN/ASME
Surface Condition	Steam Oxide
Tap Blank Construction	DIN/ANSI
Tap Chamfer	Plug
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	M4x0.7
Dimensions
Diameter	0.1575"
Overall Length	2.4803"
Overall Length (Metric)	63.00mm
Shank Size	0.1680"
Shank Size (Metric)	4.27mm
Shank Square Length	0.2500"
Shank Square Length (Metric)	6.35mm
Shank Square Size	0.1310"
Shank Square Size (Metric)	3.33mm
Tap Neck Length	0.4330"
Application
Depth of Cut	2xD
Material Application	M: Stainless Steel, P: Steel
Operation Type	Thru Hole

Note: Please read description carefully. Do not base your order on the picture presented.
