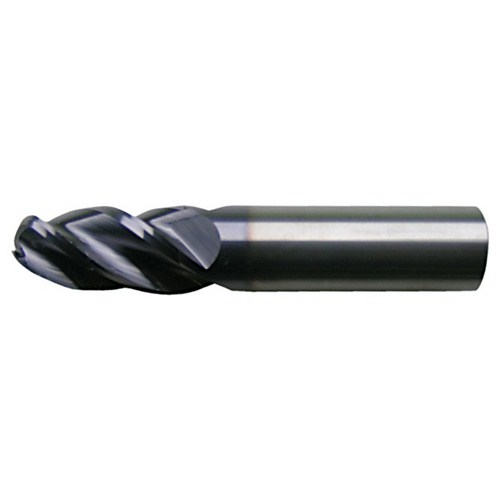

Cleveland, C60108, .125" Solid Carbide 4-Flute Ball Nose End Mill, Bright Surface Condition

Applications

Stainless (Martensitic & Austenitic 304, 316, 312, 316L, 421, 420, 17-4PH)
Hardened Steels (D-2, 4340, H-13)
Special Alloys (Inconel, Hastelloy, Titanium, etc. Inconel 718, Hastelloy B, 6AI-4V)
Machining

Profile Cutting
Plunging
Slot with Radius

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

List Style	CEM-V-4B
Construction	Variable Index
Material	Solid Carbide
Shank	Straight without Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Ball Nose
Number of Flutes	4
Surface Condition	Bright

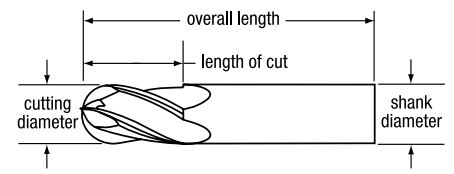

Diameter Fractional	1/8"
Decimal Equivalent	0.1250" / 3.18mm
Shank Diameter	0.1250" / 3.17mm
Length of Cut	0.3750" / 9.52mm
Overall Length	1.5000" / 38.10mm

Product Details

List Style	CEM-V-4B
Construction	Variable Index
Material	Solid Carbide
Shank	Straight without Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Ball Nose
Number of Flutes	4
Surface Condition	Bright
Diameter Fractional	1/8"
Decimal Equivalent	0.1250" / 3.18mm
Shank Diameter	0.1250" / 3.17mm
Length of Cut	0.3750" / 9.52mm
Overall Length	1.5000" / 38.10mm

Note: Please read description carefully. Do not base your order on the picture presented.
