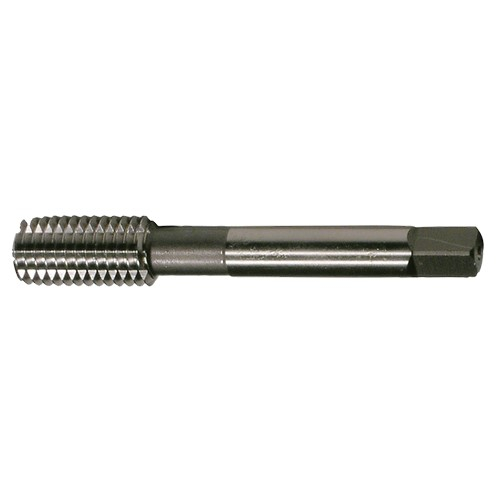

Cleveland, C59302, 5/16"-18 H7 Bottoming Chamfer General Purpose Forming Tap - Bright

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1092
Set	No
Thread Specifications
Thread Creation	Thread Forming
Thread Form	UNC
Thread Length	0.6875"
Thread Length (Metric)	17.46mm
Thread Pitch	18
Thread Size	5/16"
Thread Tolerance	2B-3B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	0
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Bottoming
Tap Construction	CNC
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H7
Tap Spiral Point	No
Tap Style	Thread Forming Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	5/16-18 UNC
Dimensions
Diameter	0.3125"
Overall Length	2.7188"
Overall Length (Metric)	69.06mm
Shank Size	0.3180"
Shank Size (Metric)	8.08mm
Shank Square Length	0.3750"
Shank Square Length (Metric)	9.52mm
Shank Square Size	0.2380"
Shank Square Size (Metric)	6.05mm
Tap Neck Length	1.1250"
Application
Depth of Cut	2xD
Material Application	M: Stainless Steel, N: Non-ferrous Metal, P: Steel
Operation Type	Bottoming Hole

Notes
