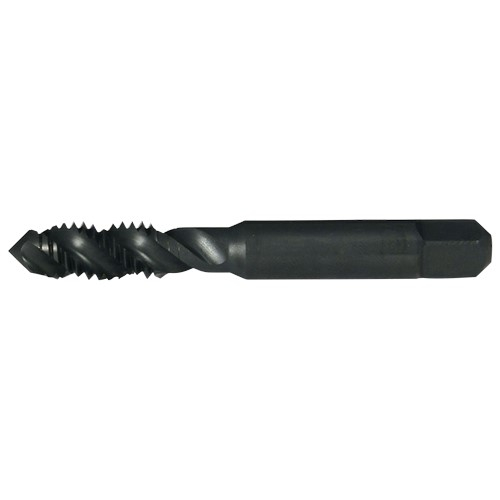

#6-32 H3 Plug Chamfer Spiral Flute Tap – Steam Oxide

Features

List Style: 1095
Material: HSS
Shank: Straight w/ Square
Tap Blank Construction: USCTI Table 302A
Tap Chamfer: Plug
Tap Construction: CNC Heavy Duty
Tap Style: Spiral Flute Tap
Surface Condition: Steam Oxide
Thread Size: #6-32
Thread Form: UNC
Number of Flutes: 2
H-Limit: H3
Decimal Equivalent: 0.1380" / 3.51mm
Shank Diameter: 0.1410" / 3.58mm
Shank Square Size: 0.1100" / 2.79mm
Shank Square Length: 0.1875" / 4.76mm
Thread Length: 0.3750" / 9.52mm
Overall Length: 2.0000" / 50.80mm

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1095
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.3800"
Thread Length (Metric)	9.65mm
Thread Pitch	32
Thread Size	#6
Thread Tolerance	2B
Specifications
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	45°
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Shank Configuration	Straight w/ Square
Surface Condition	Steam Oxide
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	CNC Heavy Duty
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	No
Tap Style	Spiral Flute Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	#6-32 UNC
Dimensions
Diameter	0.1380"
Overall Length	2.0000"
Overall Length (Metric)	50.80mm
Shank Size	0.1410"
Shank Size (Metric)	3.58mm
Shank Square Length	0.1875"
Shank Square Length (Metric)	4.76mm
Shank Square Size	0.1100"
Shank Square Size (Metric)	2.79mm
Tap Neck Length	0.3200"
Application
Depth of Cut	2.5xD
Material Application	M: Stainless Steel, P: Steel
Operation Type	Blind Hole

Product Details

General
List Style Number	1095
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.3800"
Thread Length (Metric)	9.65mm
Thread Pitch	32
Thread Size	#6
Thread Tolerance	2B
Specifications
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	45°
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Shank Configuration	Straight w/ Square
Surface Condition	Steam Oxide
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	CNC Heavy Duty
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	No
Tap Style	Spiral Flute Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	#6-32 UNC
Dimensions
Diameter	0.1380"
Overall Length	2.0000"
Overall Length (Metric)	50.80mm
Shank Size	0.1410"
Shank Size (Metric)	3.58mm
Shank Square Length	0.1875"
Shank Square Length (Metric)	4.76mm
Shank Square Size	0.1100"
Shank Square Size (Metric)	2.79mm
Tap Neck Length	0.3200"
Application
Depth of Cut	2.5xD
Material Application	M: Stainless Steel, P: Steel
Operation Type	Blind Hole

Note: Please read description carefully. Do not base your order on the picture presented.
