Options and Related Products

Product Size:: Product Size: 2.9375x0.3810"

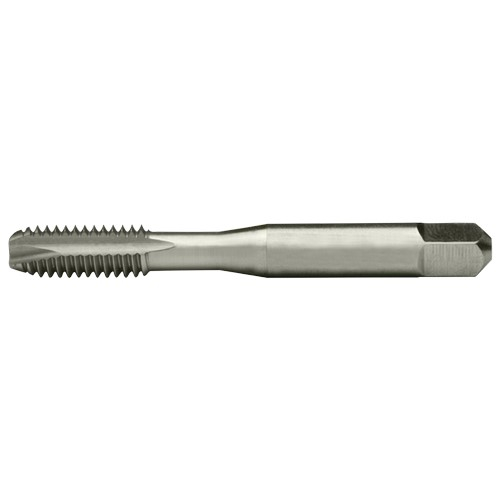

Cleveland, C57452, 1053 2.9375x0.3810" 3/8 16 H3 1053 Bright High Speed Steel Spiral Point Tap

Features:

USCTI 302
HSS
Bright
Low Shear
Spiral Point Tap

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1053
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.7500"
Thread Length (Metric)	19.05mm
Thread Pitch	16
Thread Size	3/8"
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Low Shear
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	3/8-16 UNC
Dimensions
Diameter	0.3750"
Overall Length	2.9400"
Overall Length (Metric)	74.68mm
Shank Size	0.3810"
Shank Size (Metric)	9.68mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Size	0.2860"
Shank Square Size (Metric)	7.26mm
Tap Neck Length	0.5100"
Application
Depth of Cut	2xD
Material Application	K: Cast Iron, P: Steel
Operation Type	Thru Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	1053
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.7500"
Thread Length (Metric)	19.05mm
Thread Pitch	16
Thread Size	3/8"
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Low Shear
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	3/8-16 UNC
Dimensions
Diameter	0.3750"
Overall Length	2.9400"
Overall Length (Metric)	74.68mm
Shank Size	0.3810"
Shank Size (Metric)	9.68mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Size	0.2860"
Shank Square Size (Metric)	7.26mm
Tap Neck Length	0.5100"
Application
Depth of Cut	2xD
Material Application	K: Cast Iron, P: Steel
Operation Type	Thru Hole

Note: Please read description carefully. Do not base your order on the picture presented.
