Thread Size:: Thread Size: M12 x 1.25

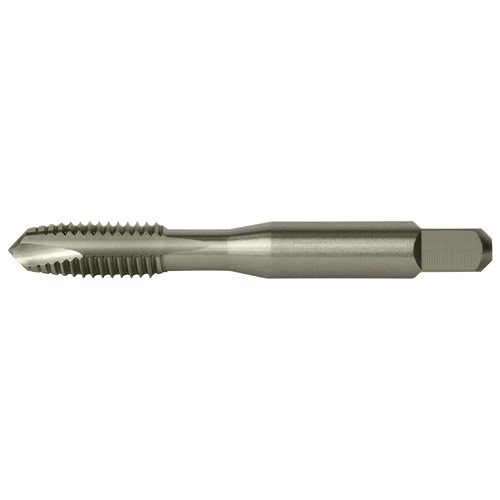

Cleveland, C57199, 0.4724" 1011 D5 High Speed Steel Straight with Square Plug Spiral Point Tap

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1011
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	Metric
Thread Length	1.6562"
Thread Length (Metric)	42.07mm
Thread Pitch	1.25
Thread Size	M12
Thread Tolerance	6H
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Metric
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	D5
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	M12x1.25
Dimensions
Diameter	0.4724"
Overall Length	3.3750"
Overall Length (Metric)	85.72mm
Shank Size	0.3670"
Shank Size (Metric)	9.32mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Size	0.2750"
Shank Square Size (Metric)	6.99mm
Application
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Thru Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	1011
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	Metric
Thread Length	1.6562"
Thread Length (Metric)	42.07mm
Thread Pitch	1.25
Thread Size	M12
Thread Tolerance	6H
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Metric
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	D5
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	M12x1.25
Dimensions
Diameter	0.4724"
Overall Length	3.3750"
Overall Length (Metric)	85.72mm
Shank Size	0.3670"
Shank Size (Metric)	9.32mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Size	0.2750"
Shank Square Size (Metric)	6.99mm
Application
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Thru Hole
