Buy Cleveland C57048, Style 1011 Spiral Point Tap - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

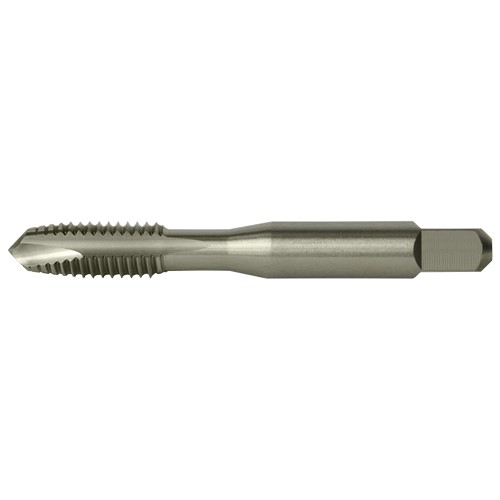

Cleveland, C57048, Style 1011 0.112x1.875" 2-Flute H2 H-Limit Thread Size #4-40 Bright Plug Spiral Point Tap

Applications:

Alloy Steel
Carbon Steel
Aluminum

Features:

USCTI 302
General Purpose
HSS Substrate
Bright
Ground Tread
Thru Holes
3-5 Plug

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1011
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.3100"
Thread Length (Metric)	7.87mm
Thread Pitch	40
Thread Size	#4
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H2
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	#4-40 UNC
Dimensions
Diameter	0.1120"
Overall Length	1.8800"
Overall Length (Metric)	47.75mm
Shank Size	0.1410"
Shank Size (Metric)	3.58mm
Shank Square Length	0.1875"
Shank Square Length (Metric)	4.76mm
Shank Square Size	0.1100"
Shank Square Size (Metric)	2.79mm
Tap Neck Length	0.2600"
Application
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Thru Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	1011
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.3100"
Thread Length (Metric)	7.87mm
Thread Pitch	40
Thread Size	#4
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H2
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	#4-40 UNC
Dimensions
Diameter	0.1120"
Overall Length	1.8800"
Overall Length (Metric)	47.75mm
Shank Size	0.1410"
Shank Size (Metric)	3.58mm
Shank Square Length	0.1875"
Shank Square Length (Metric)	4.76mm
Shank Square Size	0.1100"
Shank Square Size (Metric)	2.79mm
Tap Neck Length	0.2600"
Application
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Thru Hole
