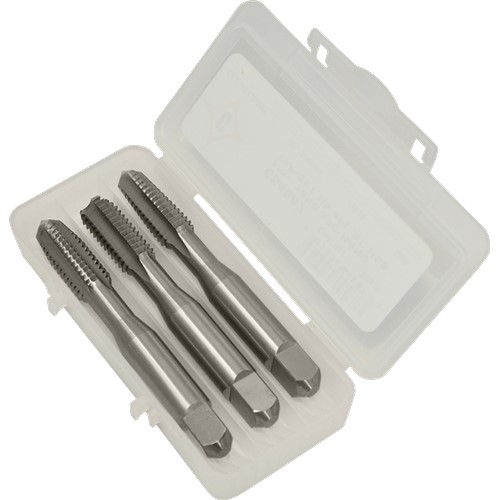

7/8 14 H4 1004/900 General-Purpose Hand Tap Set

Hand Taps

List Style: 1004
Material: High Speed Steel
Shank: Straight w/ Square
Tap Blank Construction: USCTI Table 302
Tap Chamfer: Taper-Plug-Bottoming
Tap Construction: Standard
Tap Style: Straight Flute Hand Tap
Surface Condition: Bright
Thread Size: 7/8-14
Thread Form: UNF
Number of Flutes: 4
H-Limit: H4
Decimal Equivalent: 0.8750" / 22.23mm
Shank Diameter: 0.6970" / 17.70mm
Shank Square Size: 0.5230" / 13.28mm
Shank Square Length: 0.7500" / 19.05mm
Thread Length: 2.2188" / 56.36mm
Overall Length: 4.6875" / 119.06mm

Features:

USCTI 302
General Purpose
Blind Holes
Thru Holes
Ground Thread
HSS Substrate
Bright
Plug 3-5
Taper 7-10
Bottoming 1-1/2 - 2

Applications

Carbon Steel
Alloy Steel
Free-Match Stainless
Aluminum

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1004
Set	Yes
Thread Specifications
Thread Form	UNF
Thread Length	2.2188"
Thread Length (Metric)	56.36mm
Thread Pitch	14
Thread Size	7/8"
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302
Tap Chamfer	Taper-Plug-Bottoming
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H4
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	7/8-14 UNF
Set Specifications
Set Case Brand	Rose Plastic®
Set Case Type	UniBox
Set Number of Pieces	3
Set Size Range	7/8-14 UNF
Dimensions
Diameter	0.8750"
Overall Length	4.6875"
Overall Length (Metric)	119.06mm
Shank Size	0.6970"
Shank Size (Metric)	17.70mm
Shank Square Length	0.7500"
Shank Square Length (Metric)	19.05mm
Shank Square Size	0.5230"
Shank Square Size (Metric)	13.28mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	1004
Set	Yes
Thread Specifications
Thread Form	UNF
Thread Length	2.2188"
Thread Length (Metric)	56.36mm
Thread Pitch	14
Thread Size	7/8"
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302
Tap Chamfer	Taper-Plug-Bottoming
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H4
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	7/8-14 UNF
Set Specifications
Set Case Brand	Rose Plastic®
Set Case Type	UniBox
Set Number of Pieces	3
Set Size Range	7/8-14 UNF
Dimensions
Diameter	0.8750"
Overall Length	4.6875"
Overall Length (Metric)	119.06mm
Shank Size	0.6970"
Shank Size (Metric)	17.70mm
Shank Square Length	0.7500"
Shank Square Length (Metric)	19.05mm
Shank Square Size	0.5230"
Shank Square Size (Metric)	13.28mm
