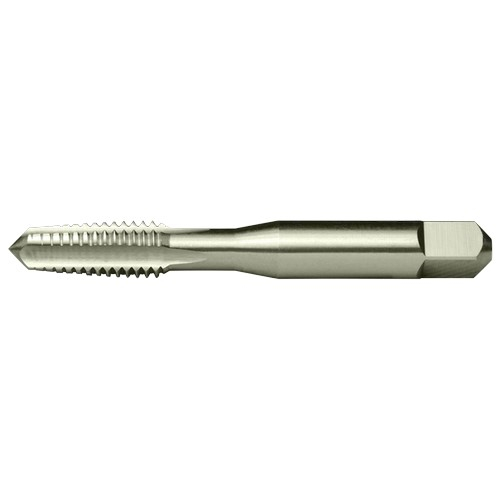

Cleveland, C54726, 1/2-13 NC GH3 4F TPR 1001/901 General-Purpose Taper Hand Tap

Hand Taps

Features:

Applications

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1001
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.9400"
Thread Length (Metric)	23.88mm
Thread Pitch	13
Thread Size	1/2"
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Taper
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	1/2-13 UNC
Dimensions
Diameter	0.5000"
Overall Length	3.3800"
Overall Length (Metric)	85.85mm
Shank Size	0.3670"
Shank Size (Metric)	9.32mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Size	0.2750"
Shank Square Size (Metric)	6.99mm
Tap Neck Length	0.7300"
Application
Depth of Cut	1.5xD
Material Application	P: Steel, N: Non-ferrous Metal, K: Cast Iron, M: Stainless Steel
Operation Type	Blind Hole

General
List Style Number	1001
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.9400"
Thread Length (Metric)	23.88mm
Thread Pitch	13
Thread Size	1/2"
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Taper
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	1/2-13 UNC
Dimensions
Diameter	0.5000"
Overall Length	3.3800"
Overall Length (Metric)	85.85mm
Shank Size	0.3670"
Shank Size (Metric)	9.32mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Size	0.2750"
Shank Square Size (Metric)	6.99mm
Tap Neck Length	0.7300"
Application
Depth of Cut	1.5xD
Material Application	P: Steel, N: Non-ferrous Metal, K: Cast Iron, M: Stainless Steel
Operation Type	Blind Hole

Note: Please read description carefully. Do not base your order on the picture presented.
