Buy Cleveland C54448, 1001 Bright HSS Hand Tap

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

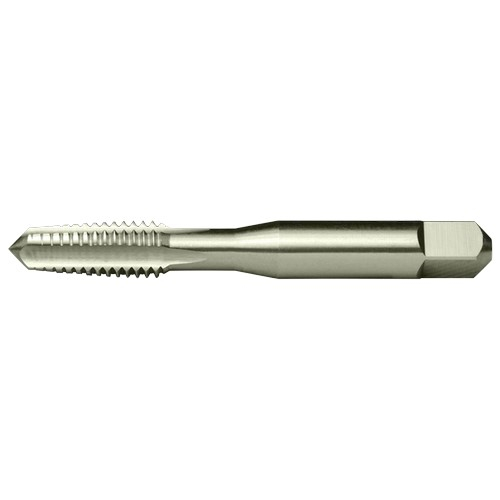

Cleveland, C54448, 1001 2.5000x0.2550" 1/4-20 NC GH2 TPR 1001/901 Bright High Speed Steel Hand Tap

Features:

Applications:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1001
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.6300"
Thread Length (Metric)	16.00mm
Thread Pitch	20
Thread Size	1/4"
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Taper
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H2
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	1/4-20 UNC
Dimensions
Diameter	0.2500"
Overall Length	2.5000"
Overall Length (Metric)	63.50mm
Shank Size	0.2550"
Shank Size (Metric)	6.48mm
Shank Square Length	0.3125"
Shank Square Length (Metric)	7.94mm
Shank Square Size	0.1910"
Shank Square Size (Metric)	4.85mm
Tap Neck Length	0.3900"
Application
Depth of Cut	1.5xD
Material Application	P: Steel, N: Non-ferrous Metal, K: Cast Iron, M: Stainless Steel
Operation Type	Blind Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

General
List Style Number	1001
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.6300"
Thread Length (Metric)	16.00mm
Thread Pitch	20
Thread Size	1/4"
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Taper
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H2
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	1/4-20 UNC
Dimensions
Diameter	0.2500"
Overall Length	2.5000"
Overall Length (Metric)	63.50mm
Shank Size	0.2550"
Shank Size (Metric)	6.48mm
Shank Square Length	0.3125"
Shank Square Length (Metric)	7.94mm
Shank Square Size	0.1910"
Shank Square Size (Metric)	4.85mm
Tap Neck Length	0.3900"
Application
Depth of Cut	1.5xD
Material Application	P: Steel, N: Non-ferrous Metal, K: Cast Iron, M: Stainless Steel
Operation Type	Blind Hole

Note: Please read description carefully. Do not base your order on the picture presented.
