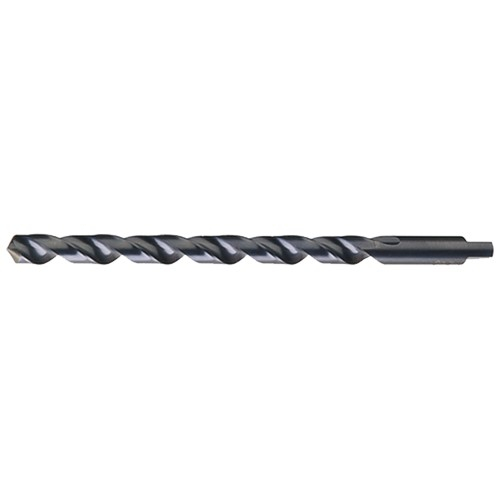

Cleveland, C09545, .4062" Heavy Duty High Speed Steel Taper Length Drill with Automotive Tanged Shank

These drills feature a 20% longer flute length than regular taper length drills for increased regrinds and reach.

Features

ANSI Sizes
Heavy Duty
HSS Substrate
Steam Oxide

Applications

Alloy-Tool Steel
Stainless Steel
Cast Iron

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	2540
Set	No
Specifications
Drill Construction	Heavy-Duty
Drill Size System	Fractional
Drill Style	Taper Length Drill
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Point Angle	118°
Point Style	Notched
Shank Configuration	Tanged
Surface Condition	Steam Oxide
Tool Size	13/32"

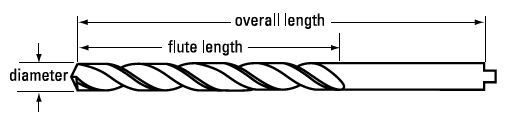

Dimensions
Diameter	0.4062"
Diameter (Fraction)	13/32"
Flute Length	4.3750"
Flute Length (Metric)	111.13mm
Overall Length	7.0000"
Overall Length (Metric)	177.80mm
Shank Size	0.4062"
Shank Size (Metric)	10.32mm

Product Details

General
List Style Number	2540
Set	No
Specifications
Drill Construction	Heavy-Duty
Drill Size System	Fractional
Drill Style	Taper Length Drill
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Point Angle	118°
Point Style	Notched
Shank Configuration	Tanged
Surface Condition	Steam Oxide
Tool Size	13/32"
Dimensions
Diameter	0.4062"
Diameter (Fraction)	13/32"
Flute Length	4.3750"
Flute Length (Metric)	111.13mm
Overall Length	7.0000"
Overall Length (Metric)	177.80mm
Shank Size	0.4062"
Shank Size (Metric)	10.32mm

Note: Please read description carefully. Do not base your order on the picture presented.
