Buy Cleveland C05193, Parabolic Taper Length Drill, (Pack of 5 pcs) - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 5 pcs

Cleveland, C05193, .3594" High Speed Steel Parabolic Taper Length Drill, TiN Surface Condition

Features

ANSI Sizes
High Performance
HSS Substrate
TiN

Applications

Low Carbon Steel
Soft Alloy Steel
Non-Ferrous Materials
Aluminum
Copper Alloys
Free-Mach Stainless

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	2565-TN
Set	No
Specifications
Drill Construction	Parabolic
Drill Size System	Fractional
Drill Style	Taper Length Drill
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Point Angle	118°
Point Style	Notched
Shank Configuration	Tanged
Surface Condition	TiN
Tool Size	23/64"

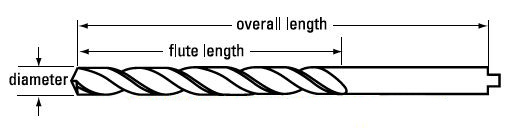

Dimensions
Diameter	0.3594"
Diameter (Fraction)	23/64"
Flute Length	4.2500"
Flute Length (Metric)	107.95mm
Overall Length	6.7500"
Overall Length (Metric)	171.45mm
Shank Size	0.3594"
Shank Size (Metric)	9.13mm

Product Details

General
List Style Number	2565-TN
Set	No
Specifications
Drill Construction	Parabolic
Drill Size System	Fractional
Drill Style	Taper Length Drill
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	2
Point Angle	118°
Point Style	Notched
Shank Configuration	Tanged
Surface Condition	TiN
Tool Size	23/64"
Dimensions
Diameter	0.3594"
Diameter (Fraction)	23/64"
Flute Length	4.2500"
Flute Length (Metric)	107.95mm
Overall Length	6.7500"
Overall Length (Metric)	171.45mm
Shank Size	0.3594"
Shank Size (Metric)	9.13mm

Note: Please read description carefully. Do not base your order on the picture presented.
