Cleveland C00907 Ezy-Out #1 - #6 Screw Extractor Set

  • Brand Cleveland
  • Part # C00907
  • Model # Ezy-Out
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

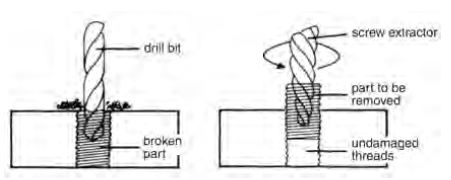

Use Screw Extractors to Remove Broken Screws and Bolts


Screw extractors are often used in maintenance departments, machine shops, garages, and workshops to remove broken screws, bolts, or other threaded parts. To remove a broken screw, follow this procedure.

  • Drill a hole into the broken screw using the recommended drill size from the table above.
  • Insert the proper screw extractor into the hole and start a counterclockwise (left-hand) rotation using a tap wrench on the square on the shank.
  • The extractor will grip the wall of the hole in the screw and back the screw out without damaging the threads.
  • A penetrating oil can be helpful in removing rusty or corroded parts.

Includes

  • #1 Screw Extractor
  • #2 Screw Extractor
  • #3 Screw Extractor
  • #4 Screw Extractor
  • #5 Screw Extractor
  • #6 Screw Extractor

Features

  • ANSI Sizes
  • Heavy Duty
  • Alloy Steel Substrate

Applications

  • Alloy-Tool Steel
  • Med Carbon Steel
  • Low Carbon Steel
  • Cast Iron
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Extractor NumberSmall EndLarge EndOverall LengthScrew SizePipe SizeUse This Drill Size
#1.054" (1.37mm).156" (3.97mm)2" (50.8mm)#8 - 1/4"-5/64"
#20.8" (2.03mm).188" (4.76mm)2.375" (60.33mm)#12 - 5/16"-7/64"
#3.125" (3.18mm).25" (6.35mm)2.688" (68.26mm)5/16" - 7/16"-5/32"
#4.188" (4.76mm).328" (8.33mm)2.875" (73.03mm)7/16" - 9/16"-1/4"
#5.25" (6.35mm).438" (11.11mm)3.375" (85.73mm)9/16" - 3/4"1/8", 1/4", 3/8"9/32"
#6.375" (9.53mm).594" (15.08mm)3.75" (95.25mm)3/4" - 1"3/8"13/32"
Product Details
Extractor NumberSmall EndLarge EndOverall LengthScrew SizePipe SizeUse This Drill Size
#1.054" (1.37mm).156" (3.97mm)2" (50.8mm)#8 - 1/4"-5/64"
#20.8" (2.03mm).188" (4.76mm)2.375" (60.33mm)#12 - 5/16"-7/64"
#3.125" (3.18mm).25" (6.35mm)2.688" (68.26mm)5/16" - 7/16"-5/32"
#4.188" (4.76mm).328" (8.33mm)2.875" (73.03mm)7/16" - 9/16"-1/4"
#5.25" (6.35mm).438" (11.11mm)3.375" (85.73mm)9/16" - 3/4"1/8", 1/4", 3/8"9/32"
#6.375" (9.53mm).594" (15.08mm)3.75" (95.25mm)3/4" - 1"3/8"13/32"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
