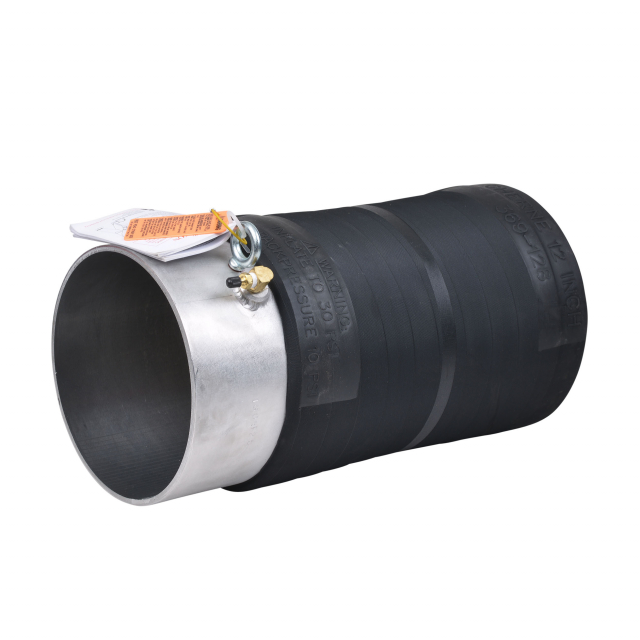

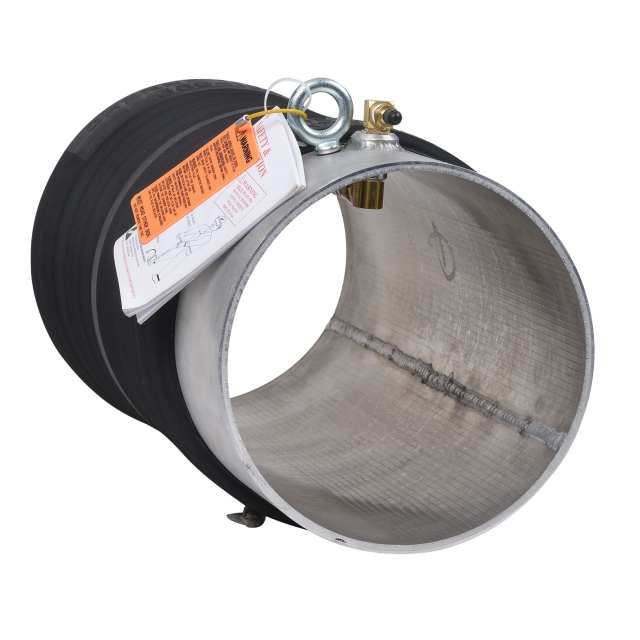

Cherne 369088 Big Mouth Single Size Flow-Through Plug

Nominal Size: 8"
  • Brand Cherne
  • Part # 369088
  • Model # Big Mouth
  • Condition
    Brand New
Availability
4-6 Weeks Factory Lead Time
Check Availability
Quantity
Share:

Options and Related Products

Nominal Size:
Nominal Size: 8"

Cherne, 369088, Big Mouth 8" Single Size Flow-Through Plug, 6"M Baypass Diameter

Big Mouth® plugs serve multiple applications. Great for gravity bypassing or bypass pumping

Features:

  • Allows for largest bypass by pipe diameter
  • Attach hose with banding
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
Nominal Size8" (200 mm)
Range of Use7.75"-8.45" (195-215 mm)
Maximum Back Pressure11 psi (0.76 bar) 25 ft. (7.6 m)
Deflated Length16" (406 mm)
Product Weight10 lbs (4.5 kg)
Inflation Pressure30 psi (2.1 bar)
Deflated Diameter7.5" (191 mm)
Inflation Thread1/4" (1)
Chain / Eye bolts3/8" (1)
Bypass Diameter6" MNP
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Nominal Size8" (200 mm)
Range of Use7.75"-8.45" (195-215 mm)
Maximum Back Pressure11 psi (0.76 bar) 25 ft. (7.6 m)
Deflated Length16" (406 mm)
Product Weight10 lbs (4.5 kg)
Inflation Pressure30 psi (2.1 bar)
Deflated Diameter7.5" (191 mm)
Inflation Thread1/4" (1)
Chain / Eye bolts3/8" (1)
Bypass Diameter6" MNP
