Canfield Connector CP-R5100-1080000-010 R5000 ISO Valve Connector

Canfield Connector, CP-R5100-1080000-010, R5000 Series ISO Rectified Solenoid Valve Connector

Features:

• Canfield Connector's R5000 Series solenoid valve connectors incorporate full-wave bridge rectifiers inside the DIN Style "A" EN175301-803 (Formerly DIN 43650) connectors.
• This standard permits industry interchangeability and has been embraced by the solenoid valve industry worldwide.
• The R5000 converts alternating current to direct current reducing coil burnout due to valve sticking.
• Also, direct current eliminates the AC "hum" inherent to alternating current.
• Features include the ability for the user to wire the connector into existing installations.
• The R5000 has a maximum current rating of 1 Amp continuous with a maximum wire gauge diameter of 14 AWG.
• An indicator light is offered for instant diagnostics and to aid in setup and installation.
• The HT High Top connector accommodates a larger wire gauge and easy installation.

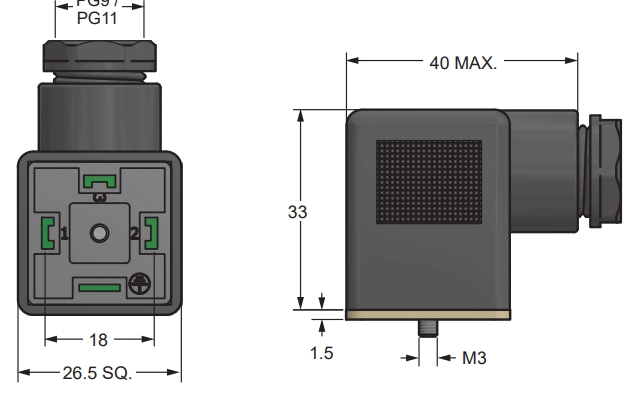

Dimensions:
