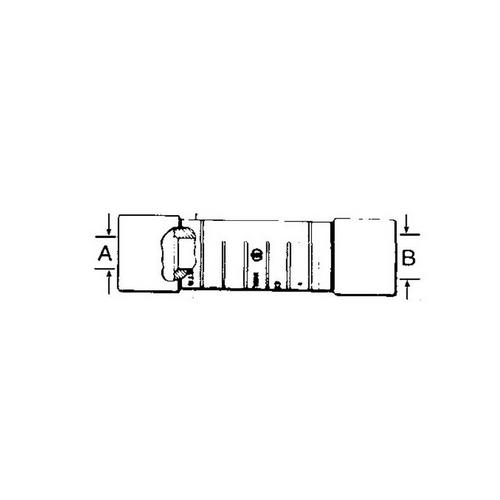

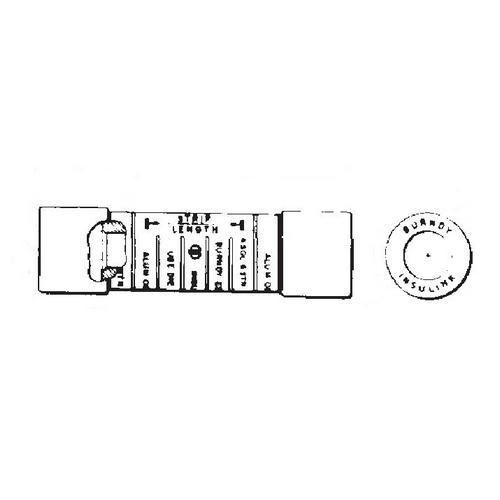

Burndy, ES4W4W, 169245 Compression Splices - Service Entrance, #6 AWG

Insulated AL service entrance compression sleeve for combinations of insulated CU, AL and ACSR conductors, Color Code: Blue (Side A), Blue (Side B).

Features:

Pre-Insulated Service Entrance Compression Connector Installed With OH25
OUR840 And MD6 HYTOOL As Well As Y35 And Y750 HYPRESS Tools
Polyethylene Caps Prevent Dirt From Accumulating In Barrel
Grip Cable For Easy Two-Hand Installation
And Seal Out Moisture
Aluminum Connector Is Anchored To Jacket
Assuring The Connector Is Under The Die When Crimping
Nylon Jacket Insulates Connector Electrically And Protects Against Water And Weather
Superior Color Coding, Pre-Filled With PENETROX Joint Compound, Tools
Die Set Catalog Number
And (number Of Crimps): HYTOOL: OH25 Tool, (1), MD6, MD7 Tool, (3), MD6, MD7 Tool, W-BG Die, (1), OUR840 Tool, X-NBG Die (1)
HYPRESS: Y35 Tool, U-BG Die, (1), Y750 Tool
Die Index: BG Element A
Conductor Type: Side A And Side B: ACSR, Aluminum, Copper

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	For Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors And In Overhead Distribution
Color Code - Side A	Blue
Color Code - Side B	Blue
Die Index	BG or 5/8
EU RoHS Indicator	Yes
Insulation	Y
Insulation Type	Nylon
Material	Aluminum
Plated	Y
Plating Type	Tin - Hot Dipped
Prefilled Oxide Inhibitor	Y
Sub Brand	INSULINK
Type	Insulated Service Entrance Connectors
Dimension - Length Overall inch	2.75 in
Dimension - Outside Diameter inch	.75 in
Conductor - ACSR Str Size A	6 (6/1) Turkey AWG
Conductor - ACSR Str Size B	6 (6/1) Turkey AWG
Conductor - AL Str Size A	6 AWG;5 AWG
Conductor - AL Str Size A Range	6 AWG-5 AWG
Conductor - AL Str Size B	6 AWG;5 AWG
Conductor - AL Str Size B Range	6 AWG-5 AWG
Conductor - Copper Solid Size A	4 AWG
Conductor - Copper Solid Size A Range	4 AWG
Conductor - Copper Solid Size B	4 AWG
Conductor - Copper Solid Size B Range	4 AWG
Conductor - Copper Str Size A	6 AWG;5 AWG
Conductor - Copper Str Size A Range	6 AWG-5 AWG
Conductor - Copper Str Size B	6 AWG;5 AWG
Conductor - Copper Str Size B Range	6 AWG-5 AWG
Certification - CSA Approved	No
Certification - ETL	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Notes
