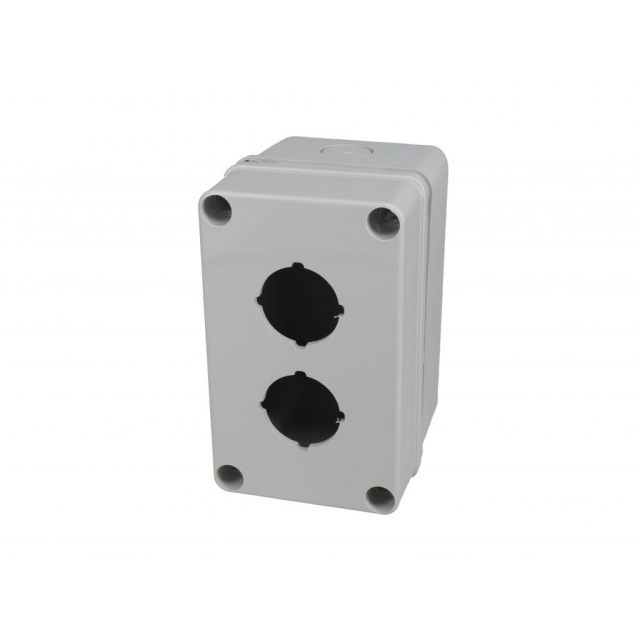

Buy Bud Industries PBB-11833-2, HeavyDuty Plastic Push Button Box

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Features:

Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Cover made of Gray Polycarbonate (PC)
High impact resistance
IP-67 TUV rating to keep out dust and water in extreme conditions.
UL508 / NEMA type 4X and type 6 listed #E343339.
CE Low Voltage directive 2006/95/EC Compliant
RoHs compliant
Non-chlorinated and non-brominated flame retardant With UL-94 V0 rating.
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
Nonmetallic captive screws without the risk of stripping.
Good chemical resistance
Continuous gasket

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

External Size L x W x D	5.12" x 3.15" x 3.35"
Internal Size L x W x D	3.69" x 1.73" x 2.75"
Weight	0.6 lbs
Color	Light Gray
RoHS Certified	03/10/2018
Indoor / Outdoor	Outdoor (UV Stabilized)
Flammability Rating	UL94-V0
Type of Plastic	Polycarbonate
UL Rating	UL508
Service Temperature Min	-40°C
Service Temperature Max	70°C
Door Type of Plastic	Polycarbonate
Features	10% Fiberglas Reinforced Plastic

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

External Size L x W x D	5.12" x 3.15" x 3.35"
Internal Size L x W x D	3.69" x 1.73" x 2.75"
Weight	0.6 lbs
Color	Light Gray
RoHS Certified	03/10/2018
Indoor / Outdoor	Outdoor (UV Stabilized)
Flammability Rating	UL94-V0
Type of Plastic	Polycarbonate
UL Rating	UL508
Service Temperature Min	-40°C
Service Temperature Max	70°C
Door Type of Plastic	Polycarbonate
Features	10% Fiberglas Reinforced Plastic

Note: Please read description carefully. Do not base your order on the picture presented.
