Options and Related Products

Size (inch):: Size (inch): 5.9x5.9x4.7
Door Type of Plastic:: Door Type of Plastic: Clear Polycarbonate

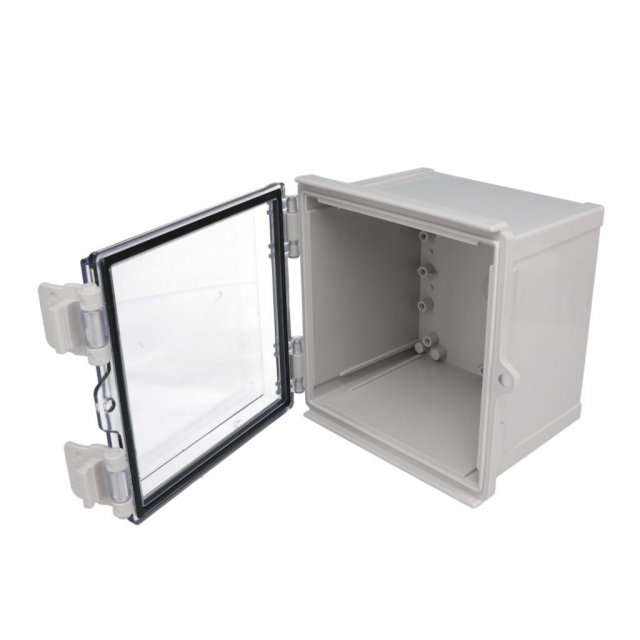

Bud Industries, PTR-28482-C, Hinged ABS Plastic Box Clear Cover, 5.9x5.9x4.7 Inch

Features:

All plastic construction

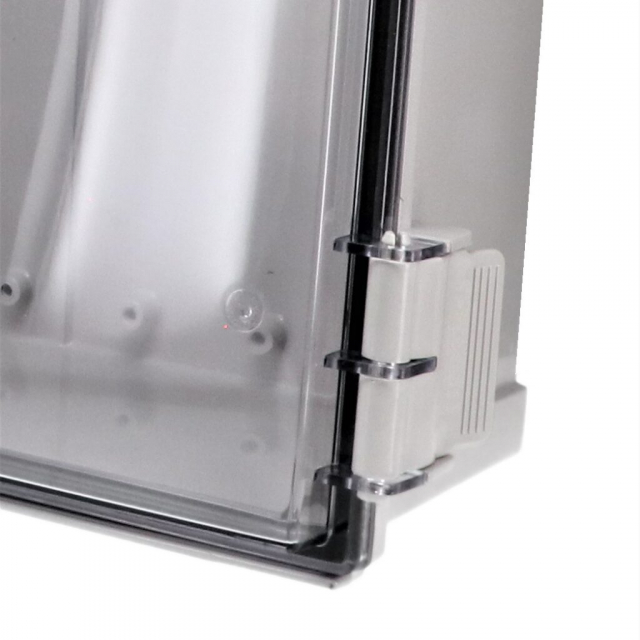

Plastic locking latch and hinges
Low-cost quality enclosure series designed to perform well in indoor conditions
Optional plastic internal panel (PTX-28482-P)
Body made of gray ABS plastic
Cover made of clear polycarbonate plastic
High impact resistance
IP-67 certified TUV rating to keep out dust and water in extreme conditions
Meets NEMA type 4X and type 6P (No UL certification)
ROHS compliant
UL-94 HB flammability rating
-20 C to +65 C extended exposure condition
Continuous poured-in-place neoprene foam gasket

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color	Light Gray
RoHS Certified	Always Compliant
NEMA Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
IP Rating	67
Features	All Plastic Construction
Mounting Style	Mounting Brackets
Cover Style	Clear, Hinged Cover
Latch Style	Plastic
Gasket Type	RAKU-PUR Foam Gasket
Knockouts	No Knockouts
Indoor / Outdoor	Indoor (Not UV Stabilized)
Flammability Rating	UL94-HB
Door Flammability Rating	UL94-HB
Type of Plastic	ABS
Door Type of Plastic	Clear Polycarbonate
Service Temperature Min	-20°C
Service Temperature Max	65°C
Hinge Location	Long Side

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Color	Light Gray
RoHS Certified	Always Compliant
NEMA Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
IP Rating	67
Features	All Plastic Construction
Mounting Style	Mounting Brackets
Cover Style	Clear, Hinged Cover
Latch Style	Plastic
Gasket Type	RAKU-PUR Foam Gasket
Knockouts	No Knockouts
Indoor / Outdoor	Indoor (Not UV Stabilized)
Flammability Rating	UL94-HB
Door Flammability Rating	UL94-HB
Type of Plastic	ABS
Door Type of Plastic	Clear Polycarbonate
Service Temperature Min	-20°C
Service Temperature Max	65°C
Hinge Location	Long Side

Note: Please read description carefully. Do not base your order on the picture presented.
