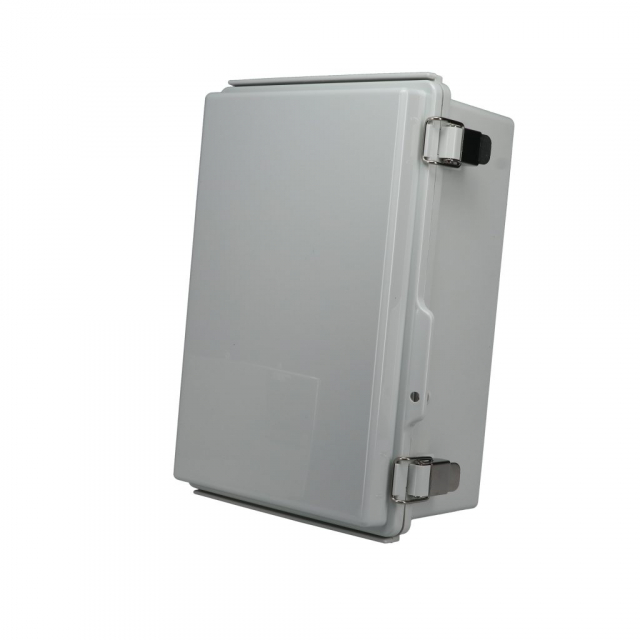

Buy Bud Industries PTQ-11051, Fiberglass Box with Stainless Steel Latch

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Features:

Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Hinged Cover made of Gray Polycarbonate (PC)
High impact resistance IK08
Stainless steel latch
IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
UL508 / UL tested for type 4X, listed #E194432.
RoHs compliant
Non-chlorinated & non-brominated flame retardant With UL-94 V0 and UL-94 5VA rating at 3mm
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color	Light Gray
RoHS Certified	Always Compliant
NEMA Rating	NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating	67
Features	10% Fiberglas Reinforced Plastic
Mounting Style	Mounting Brackets
Cover Style	Opaque, Hinged Cover
Latch Style	Stainless Steel
Gasket Type	RAKU-PUR Foam Gasket
Features	10% Fiberglass Reinforced Plastic
Indoor / Outdoor	Outdoor (UV Stabilized)
Flammability Rating	UL94-5VA
Door Flammability Rating	UL94-5VA
Type of Plastic	Gray Polycarbonate
Door Type of Plastic	Polycarbonate
UL Rating	UL508
Service Temperature Min	-40°C
Service Temperature Max	95°C
Hinge Location	Long Side
