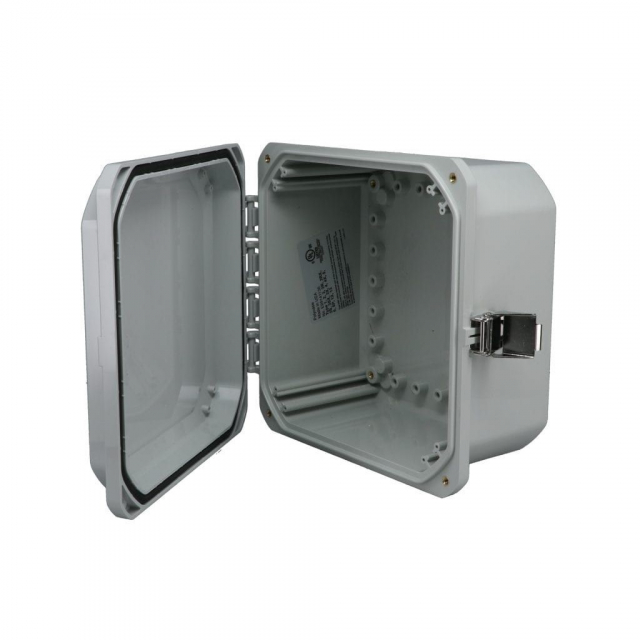

Bud Industries DPH-28709 DPH Series Gray Cover, 9 x 9 x 5.7"

Dimensions: 9 x 9 x 5.7", Cover Type: Hinded, Color: Gray
  • Brand Bud Industries
  • Part # DPH-28709
  • Model # DPH Series
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Dimensions:
Dimensions: 9 x 9 x 5.7"
Cover Type:
Cover Type: Hinded
Color:
Color: Gray

Features:

  • Rated NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 12 & 13
  • Rated IP65, IP66
  • Impact-resistant polycarbonate UL94-5VA
  • Continuous gasket for a watertight seal
  • Designed for outdoor use: weatherproof, waterproof and corrosion-resistant
  • Hinged cover with stainless steel hardware
  • Stainless steel latch with area for padlock
  • Modular mounting bosses in base for panel and DIN rail mounting
  • Additional mounting bosses at top of base and inside the cover
  • Multiple mounting panel kits; options include: Base, Hinged, Cover and Floating
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
External Size L x W x D9.04" x 9.04" x 5.72"
Internal Size L x W x D8.04" x 8.04" x 4.86"
Weightlbs
ColorLight Gray
RoHS CertifiedAlways Compliant
NEMA RatingNEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating68
FeaturesMolded Silicon Gasket
Mounting StyleMounting Brackets
Cover StyleOpaque, Hinged Cover
Latch StyleStainless Steel
Gasket TypeContinuous Molded Silicone
Indoor / OutdoorOutdoor (UV Stabilized)
Flammability RatingUL94-5VA
Door Flammability RatingUL94-5VA
Type of PlasticGray Polycarbonate
Door Type of PlasticPolycarbonate
UL RatingUL508
Service Temperature Min-35°C
Service Temperature Max110°C
Hinge LocationLong Side
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
External Size L x W x D9.04" x 9.04" x 5.72"
Internal Size L x W x D8.04" x 8.04" x 4.86"
Weightlbs
ColorLight Gray
RoHS CertifiedAlways Compliant
NEMA RatingNEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating68
FeaturesMolded Silicon Gasket
Mounting StyleMounting Brackets
Cover StyleOpaque, Hinged Cover
Latch StyleStainless Steel
Gasket TypeContinuous Molded Silicone
Indoor / OutdoorOutdoor (UV Stabilized)
Flammability RatingUL94-5VA
Door Flammability RatingUL94-5VA
Type of PlasticGray Polycarbonate
Door Type of PlasticPolycarbonate
UL RatingUL508
Service Temperature Min-35°C
Service Temperature Max110°C
Hinge LocationLong Side
Note

Note: Please read description carefully. Do not base your order on the picture presented.
