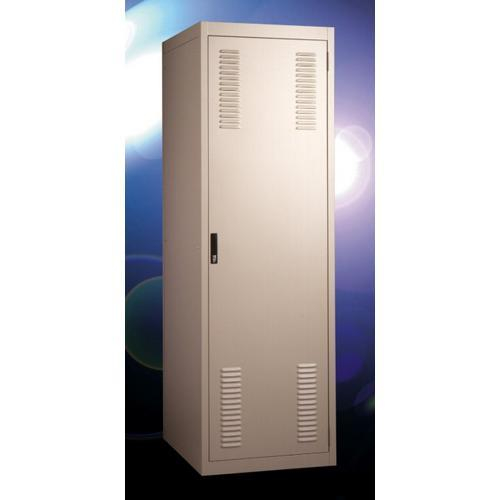

Bud Industries DC-8010 Equipment Cabinet Rack, 19" x 23"

DC-8010 - Equipment Cabinet Rack, 19/23

Design Features

• Standard 84" high cabinet Rack with 27" width and 30.75" overall depth
• 78.75" panel height with choice of either 19 inch or 23 inch panel width
• Sturdy all-welded steel frame
• Four 4.00" diameter cable access ports in the top and one 9.56" square cable access hole in the bottom
• Lockable ventilated front and rear doors
• Two pairs of L-shaped panel mounting rails that accept either M6 metric or #12-24 threaded cage nuts and screws (order separately: #851-DLH [M6 cage nut], #9261 [M6 screw], #307 [#12-24 cage nut], #9260 [#12-24 screw])
• Includes one #POS-194-S Surge Suppressed Power Outlet Strip
• 1200# equipment load capacity
• Accepts most Bud accessories
