Bud Industries ANX-93817 ANS Internal Aluminum Panel 6.71 x 4.82"

Dimensions: 6.71 x 4.82"
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Dimensions:
Dimensions: 6.71 x 4.82"

Features:

  • Aluminum Internal Panel for ANS Series die-cast aluminum NEMA boxes
  • Used to mount customer equipment inside the enclosures
  • Fits models ANS-3817, ANS-3819, IPS-3917 & IPS-3919

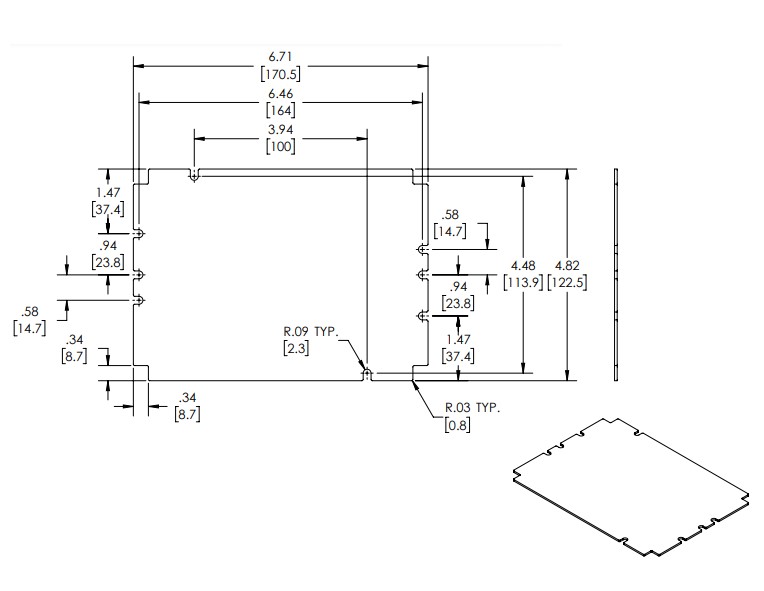

  • Length x Width x Thickness: 6.71 X 4.82 x 0.06 inches
  • Panel mounting hardware included


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Material.060 [1.5mm] THK. Aluminum
FinishNatural
Suplied withM3.5 x 6mm LG. SELF-Threading Screws (Pan HD., Phillips Drive, Steel, Zinc Plated) for Mounting
Panel Fits The Folowing EnclosuresANS-3817, ANS-3819, IPS-3917 & IPS-3919
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Material.060 [1.5mm] THK. Aluminum
FinishNatural
Suplied withM3.5 x 6mm LG. SELF-Threading Screws (Pan HD., Phillips Drive, Steel, Zinc Plated) for Mounting
Panel Fits The Folowing EnclosuresANS-3817, ANS-3819, IPS-3917 & IPS-3919
Note

Note: Please read description carefully. Do not base your order on the picture presented.
