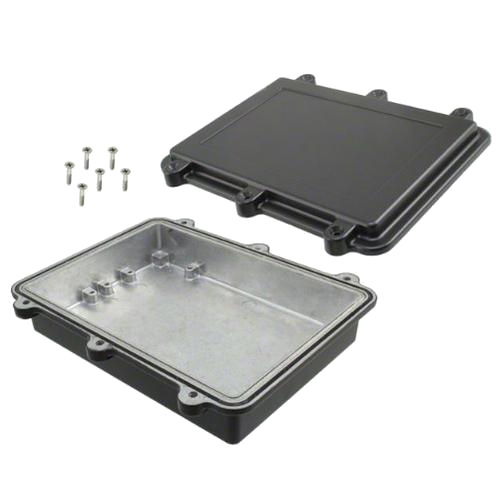

Bud Industries, ANS-3817-B, ANS Die Cast Aluminum Box with EMI/RFI Shielding, Natural Finish

Features:

Thick wall (0.098 inch, 2.5 mm) construction provides strength and rigidity for heavy duty applications.
One-piece molded outer Silicone gasket provides reliable and long lasting sealing.
Second wire-mesh with sponge rubber gasket provides excellent EMI/RFI protection.
Captive cover assembly screws (M4) are located outside the sealing area.
Recessed area on cover surface for decals.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimension
Overall L x W X D Exc. Mtg. Ears. (Inches)	7.87" x 5.91" x 1.97"
Inside L x W x D (Inches)**	7.00" x 5.03" x 1.73"
Weight (Oz.)	30.3
** Inside depth dimension excludes mounting bosses. For clearance above mounting bosses, deduct 0.31" from depth dimension (D).

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Dimension
Overall L x W X D Exc. Mtg. Ears. (Inches)	7.87" x 5.91" x 1.97"
Inside L x W x D (Inches)**	7.00" x 5.03" x 1.73"
Weight (Oz.)	30.3
** Inside depth dimension excludes mounting bosses. For clearance above mounting bosses, deduct 0.31" from depth dimension (D).
