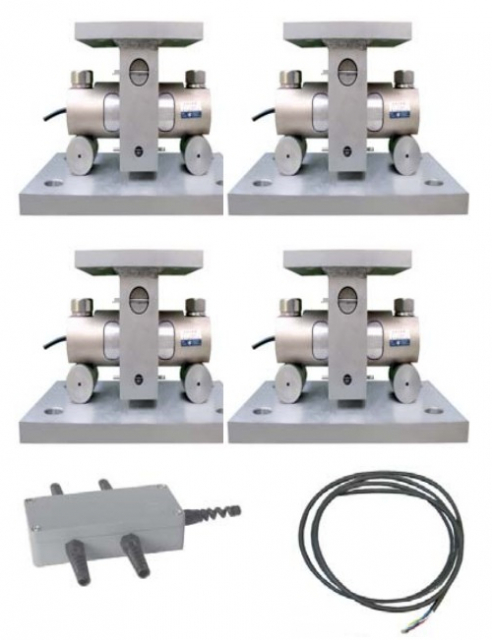

Brecknell, HM-9-401-40K-4, Weighing Module Kit w/4 H9C Load Cells, 40000lb/18144kg

Weighing Module Kit with 4 H9C Load Cells, 40000lb / 18144kg per Each Load Cell

Includes:

4 x H9C Load Cells
J-Box JB02-4
15 ft. Interface Cable
Hardware

Features:

Alloy steel construction, easy installation with anti-reversal ability.
Using under heavy static load or slight dynamic load.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Capacity, Klb	40
Safe Overload	150%F.S.
Ultimate Overload	300%F.S.
Maximum Anti-Rotation	40%F.S.
Maximum Anti-Side Loading	20%F.S.
Maximum Vertical Lifting	11K (5t)

Product Details

Capacity, Klb	40
Safe Overload	150%F.S.
Ultimate Overload	300%F.S.
Maximum Anti-Rotation	40%F.S.
Maximum Anti-Side Loading	20%F.S.
Maximum Vertical Lifting	11K (5t)

Note: Please read description carefully. Do not base your order on the picture presented.
