Buy Brady PS-125-150-WT-2, 0.75" Wire Marking Sleeve, White

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Dimensions:: Dimensions: 0.125" Dia. x 0.75"

Brady, PS-125-150-WT-2, 104675 0.125" Dia.x0.75" Wire Marking Sleeve, White

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
Fade-resistant and smudge-proof for superior aesthetic appearance
Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202; RoHS Compliant; and UL Recognized

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Unit of Measure	Roll of 5000 pcs
Quantity per Roll	5000
Material Number	B-342
Diameter as Supplied	0.125 in
Dimensions	0.235 in H
Maximum Service Temperature °F	267 °F
Maximum Wire Diameter	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-94 °F
Minimum Wire Diameter	0.046 in
Minimum Wire Gauge	22 AWG
Printable Sides	Single-Side Printable
Product Number	104675
Recovered Diameter	0.046 in
Roll Width	1.5 in
Shrink Ratio	3:1

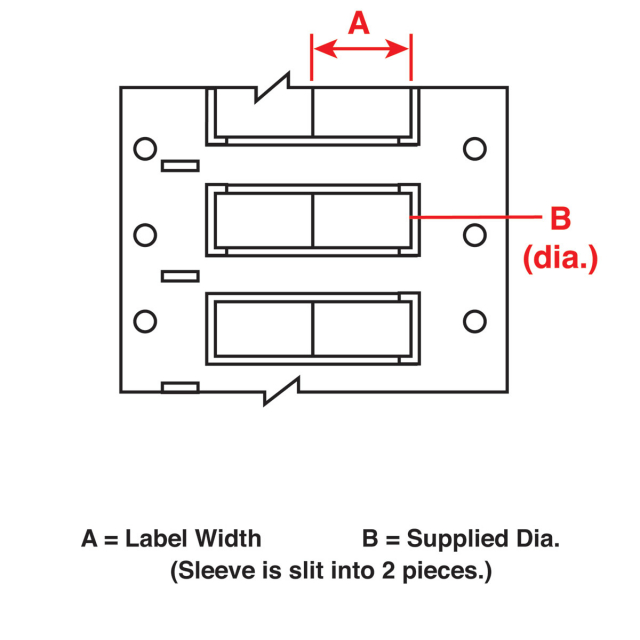

Sleeve Size	0.125 in Dia x 0.75 in W
Sleeve Size(m)	3.2 mm Dia x 19.1 mm W
Sleeve Slits	Yes
Sleeve Width	0.75 in
Trade Name	Brady IP PermaSleeve
Applications	Cable and Wire Marking
Color	White
For Use with Printer	BRADY IP Series Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media Format	Roll
Material	Polyolefin
Material Properties	Heat-Shrinkable, Self-Extinguishing
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R2000, R4300, R4502S, R5000, R6600, R6700
Label Properties	Heat Shrink Sleeves

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer www.P65Warnings.ca.gov

Product Details

Unit of Measure	Roll of 5000 pcs
Quantity per Roll	5000
Material Number	B-342
Diameter as Supplied	0.125 in
Dimensions	0.235 in H
Maximum Service Temperature °F	267 °F
Maximum Wire Diameter	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-94 °F
Minimum Wire Diameter	0.046 in
Minimum Wire Gauge	22 AWG
Printable Sides	Single-Side Printable
Product Number	104675
Recovered Diameter	0.046 in
Roll Width	1.5 in
Shrink Ratio	3:1
Sleeve Size	0.125 in Dia x 0.75 in W
Sleeve Size(m)	3.2 mm Dia x 19.1 mm W
Sleeve Slits	Yes
Sleeve Width	0.75 in
Trade Name	Brady IP PermaSleeve
Applications	Cable and Wire Marking
Color	White
For Use with Printer	BRADY IP Series Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media Format	Roll
Material	Polyolefin
Material Properties	Heat-Shrinkable, Self-Extinguishing
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R2000, R4300, R4502S, R5000, R6600, R6700
Label Properties	Heat Shrink Sleeves

Note

Note: Please read description carefully. Do not base your order on the picture presented.
