Buy Brady M7-094-175-342-YL, PermaSleeve Label, 0.094" x 1.75", Yellow

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Color:: Color: Yellow
Roll Width (in):: Roll Width (in): 1.75
Material Number:: Material Number: B-342
Sleeve Diameter (in):: Sleeve Diameter (in): 0.094

Brady Corporation, M7-094-175-342-YL, PermaSleeve Heat Shrink Wire and Cable Label for M7 Printers, 0.094" Dia x 1.75", Yellow

Features:

Industrial Grade - Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
Superior Aesthetics - Crisp, clear identification resistant to abrasions and fading
Certifications - UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202
3:1 heat shrink labels fit snugly around wires for maximum insulation protection and permanent identification
For material specific performance and properties, please refer to the Technical Data Sheet (TDS)
Brady Authentic materials work seamlessly with Brady printers for improved printer and material communication, seamless mobile app interaction, and better performance and reliability
A ribbon is required to print this material. Use Part Number M7-R6600

Designed for rigorous wire marking applications, PermaSleeve® Heat Shrink Polyolefin (B-342) labels combine speed, ease of use, and permanence to create high quality labeling.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

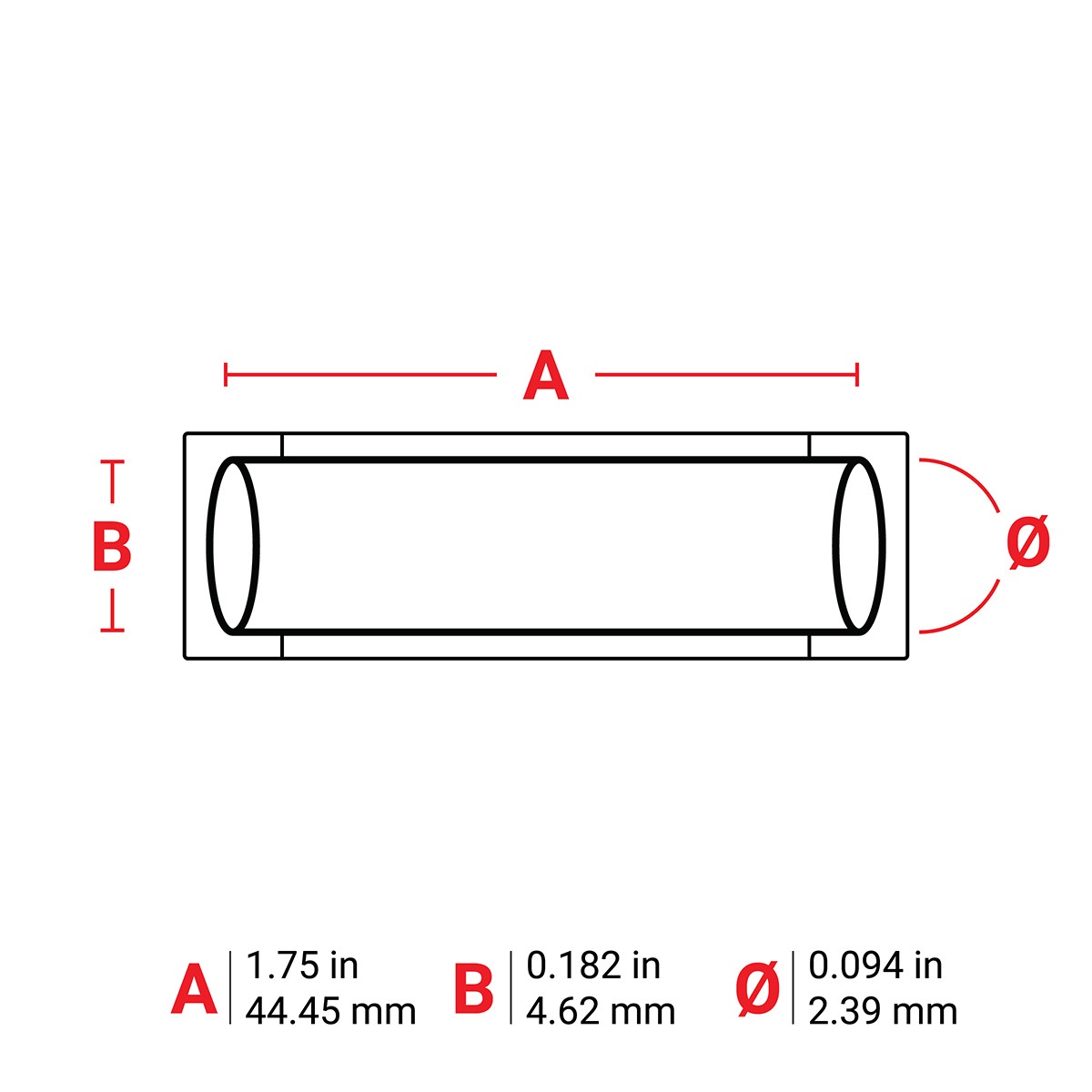

Dimensions	0.182 in H x 1.75 in W
Sleeve Size	0.094 in Dia x 1.75 in W
Vertical Repeat	0.5 in
Recovered Diameter	0.023 in
Recovered Wall Thickness	0.024 in
Web Width	2.25 in
Material Number	B-342
Material	Heat-shrink Polyolefin
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	Yellow
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	3:1
Service Temperature Range ° F	-67 ° F - 275 ° F
Minimum Service Temperature ° F	-67 ° F
Maximum Service Temperature ° F	275 ° F
Application	Electrical Labeling, Wire and Cable Labeling
Printable Sides	Single-Side Printable
Sleeve Slits	No
Print Technology	Thermal Transfer
Printer Compatibility	BMP71, M710
Recommended Ribbon	M7-R6600
Wire Diameter Range	0.023 into 0.08 in
Wire Gauge Range	28 AWG - 20 AWG
