Buy Brady LSZH-375-2-YL-3, PermaSleeve Heat Shrink Tubing

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Brady, LSZH-094-2-WT, 141202 0.094" Dia. x 2" White Low Smoke Zero Halogen PermaSleeve Heat Shrink Tubing, 3" Core

The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.

Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
Compatible with the most stringent requirements in the market today to enhance fire safety needs
2:1 heat-shrink ratio
Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Unit of Measure	Roll of 3000 pcs
Quantity per Roll	3000
Diameter as Supplied	0.375 in
Dimensions	0.645 in H
Maximum Service Temperature °F	221 °F
Maximum Wire Diameter	0.32 in
Maximum Wire Gauge	4 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter	0.188 in
Minimum Wire Gauge	8 AWG
Printable Sides	Single-Side Printable
Recovered Diameter	0.188 in
Recovered Wall Thickness	0.028 in
Roll Width	2 in
Shrink Ratio	2:1

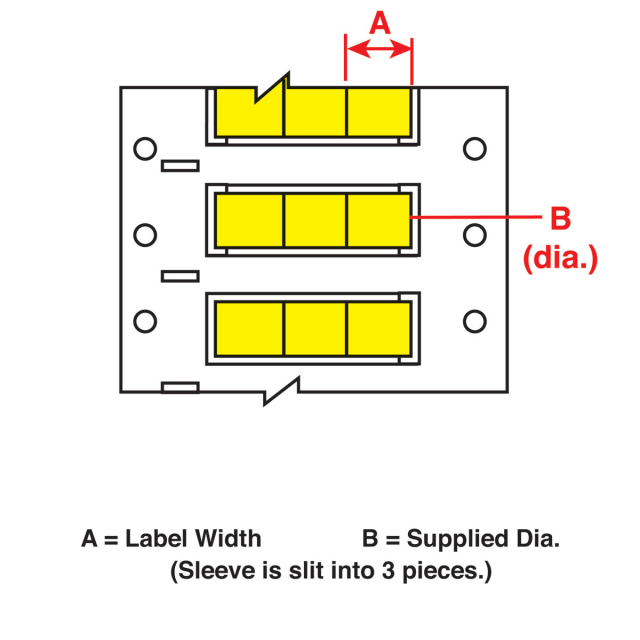

Sleeve Size	0.375 in Dia x 0.67 in W
Sleeve Size(m)	9.5 mm Dia x 17 mm W
Sleeve Slits	Yes
Sleeve Width	0.67 in
Trade Name	PermaSleeve
Vertical Repeat	1 in
Web Width	3.49 in
Applications	Cable and Wire Marking, Panel Labeling
Color	Yellow
For Use with Printer	BRADY IP Series Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media Format	Roll
Material	Polyolefin
Material Properties	Flame-Retardant, Halogen-free, Heat-Shrinkable, Low-smoke
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R6000, R6600
Label Properties	Heat Shrink Sleeves

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Unit of Measure	Roll of 3000 pcs
Quantity per Roll	3000
Diameter as Supplied	0.375 in
Dimensions	0.645 in H
Maximum Service Temperature °F	221 °F
Maximum Wire Diameter	0.32 in
Maximum Wire Gauge	4 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter	0.188 in
Minimum Wire Gauge	8 AWG
Printable Sides	Single-Side Printable
Recovered Diameter	0.188 in
Recovered Wall Thickness	0.028 in
Roll Width	2 in
Shrink Ratio	2:1
Sleeve Size	0.375 in Dia x 0.67 in W
Sleeve Size(m)	9.5 mm Dia x 17 mm W
Sleeve Slits	Yes
Sleeve Width	0.67 in
Trade Name	PermaSleeve
Vertical Repeat	1 in
Web Width	3.49 in
Applications	Cable and Wire Marking, Panel Labeling
Color	Yellow
For Use with Printer	BRADY IP Series Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media Format	Roll
Material	Polyolefin
Material Properties	Flame-Retardant, Halogen-free, Heat-Shrinkable, Low-smoke
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R6000, R6600
Label Properties	Heat Shrink Sleeves

Note: Please read description carefully. Do not base your order on the picture presented.
