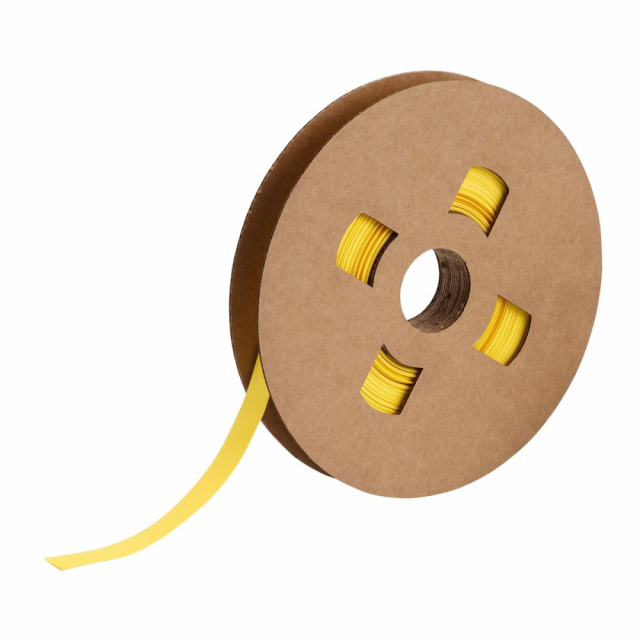

Brady, HT-C-375-YL, 3" Core Continuous PermaSleeve PVDF Heat Shrink Tubing, Yellow

Features:

2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
Operating temperature range of -67 to 437° F (-55 to 225° C)
A ribbon is required to print this material. Use Part Number IP-R6006 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6006 for a different printer

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.

Unit of Measure	Roll of 75 Feet

Unit of Measure

Roll of 75 Feet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions	0.645 in H
Height	0.645 in
Roll Length	75 ft
Sleeve Size	0.375 in Dia x 75 ft L
Recovered Diameter	0.187 in
Recovered Wall Thickness	0.015 in
Diameter as Supplied	0.375 in
Core Diameter	1.625 in
Material Number	B-345
Material	High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	Yellow
Resistance Properties	Chemical-Resistant, Gasoline-Resistant, Smear-Resistant
Shrink Ratio	2:1 (3:1 for 0.094" Dia)
Indoor or Outdoor Use	Outdoor Use
Service Temperature Range °F	-67 °F - 437 °F
Minimum Service Temperature °F	-67 °F
Minimum Service Temperature °F	-67 °F
Maximum Service Temperature °F	437 °F
For Use with Printer	BBP®72 Double-sided Sleeve Printer, BradyPrinter i5100 Industrial Label Printer, BradyPrinter i7100 Industrial Label Printer, THT 3" Core Printers
Recommended Ribbon	IP-R6006, R6006
Suggested Ribbon Series	R6000 Halogen Free, R6600
Wire Diameter Range	0.188 in to 0.32 in
Wire Gauge Range	8 AWG - 4 AWG

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Dimensions	0.645 in H
Height	0.645 in
Roll Length	75 ft
Sleeve Size	0.375 in Dia x 75 ft L
Recovered Diameter	0.187 in
Recovered Wall Thickness	0.015 in
Diameter as Supplied	0.375 in
Core Diameter	1.625 in
Material Number	B-345
Material	High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Material Properties	Flame-retardant, Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	Yellow
Resistance Properties	Chemical-Resistant, Gasoline-Resistant, Smear-Resistant
Shrink Ratio	2:1 (3:1 for 0.094" Dia)
Indoor or Outdoor Use	Outdoor Use
Service Temperature Range °F	-67 °F - 437 °F
Minimum Service Temperature °F	-67 °F
Minimum Service Temperature °F	-67 °F
Maximum Service Temperature °F	437 °F
For Use with Printer	BBP®72 Double-sided Sleeve Printer, BradyPrinter i5100 Industrial Label Printer, BradyPrinter i7100 Industrial Label Printer, THT 3" Core Printers
Recommended Ribbon	IP-R6006, R6006
Suggested Ribbon Series	R6000 Halogen Free, R6600
Wire Diameter Range	0.188 in to 0.32 in
Wire Gauge Range	8 AWG - 4 AWG
