| Maximum Label/Tape Width | 2 in |
| Color Printing Capability | Single Color |
| Maximum Labels per Day | 750 |
| Stand Alone Printing | PC connected & Stand-alone |
| Print Resolution | 300 dpi |
| Print Technology | Thermal Transfer |
| Application | - Asset Tracking
- Circuit Board Labeling
- Data and Telecommunications Labeling
- Electrical Labeling
- Facility Identification
- General Identification
- Safety Identification
- Wire and Cable Labeling
|
| Shipped With Battery | Yes |
| How Is Battery Shipped | Shipped in box, not installed |
| Battery mAh Rating | 2700 mAh |
| Battery Weight (metric) | 0.40 lb |
| Built-In Label Wizards | - Flags
- Patch Panel
- Terminal Block
- Wire Wrap
|
| Connectivity Options | Bluetooth |
| Cutter Type | Manual cut |
| Display Type | - Color LCD Screen
- LCD backlit graphics display
|
| Keyboard Type | QWERTY |
| Number of Symbols | 480 |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | User Configurable |
| Recharge Time | 4 hours |
| Special Characters Quantity | 123 |
| User Interface Type | - Full QWERTY Keyboard
- Mobile device
- PC
|
| Battery Type | Rechargeable Lithium-ion Battery |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| Height | 12.93 in |
| Width | 4.22 in |
| Depth | 4.19 in |
| Display Size | 2.8 in |
| Weight | 3.10 lb |
| UOM | Each |
| Barcode Symbologies - 2D | |
| Barcode Symbologies - Linear | - Code 128
- Code 39
- EAN-13
- Interleaved 2 of 5
- More through Brady WorkStation
- UPC-A
- UPC-E
|
| Calibration Required? | Automated through Smart Cell |
| Font Sizes | 4 - 170 pt |
| Font Styles | - Brady Alpine
- Brady Fixed Width
|
| Label Retention Feature | Yes |
| Minimum Label Length | 0.236 in |
| Maximum Print Speed | 2.0 in/s |
| Minimum Liner Width | 0.812 in |
| Print Technology | Thermal Transfer |
| On Screen Indicators | - Battery Life
- Bluetooth Status
- Ribbon and label part number recognition
- Ribbon Remaining
- Supply Remaining
|
| Device Drop Test & Durability | - Resistant to 4-foot drops
- Resistant to military-grade shocks (MIL-STD-810G)
|
| Color | Yellow, Gray |
| Compatible Media | |

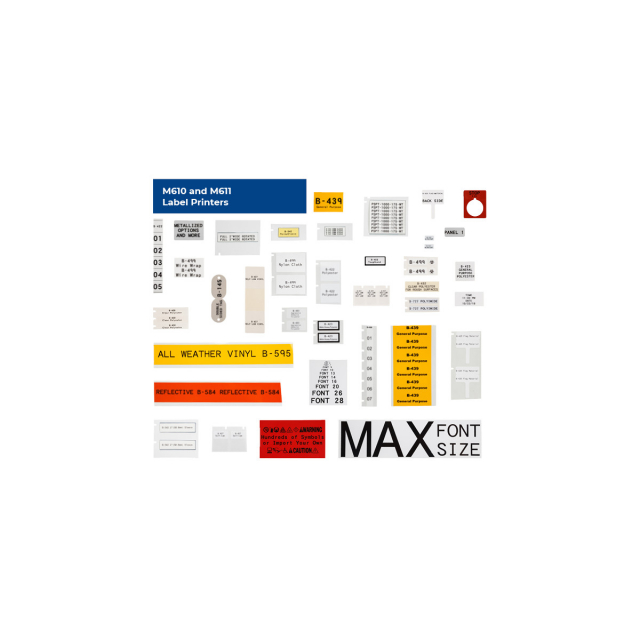

| Label Material Types | - FreezerBondz Polyester
- Heat-shrink Polyolefin
- High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
- Metallized Polyester
- Metallized Polyester with Polyester Overlaminate
- Nylon Cloth
- Paper
- Polyester
- Polyethylene
- Polyethylene Foam Laminate Polyester
- Polyimide, Polyolefin
- Polypropylene
- Polyvinylfluoride
- Reflective Tape
- Self-laminating Polyester
- Self-laminating Vinyl
- StainerBondz Polyester
- Static Dissipative Polyester
- Tamper-evident Metallized Polyester
- Tamper-evident Polyester
- Tamper-resistant Metallized Vinyl
- Tamper-resistant Vinyl
- Vinyl
- Vinyl Cloth
|
| Phones & Tablets Supported | - Android devices with Android OS 5+
- iPhone 5S or ne-wer with iOS 10+
|
| Software Compatibility | - Brady Workstation
- Express Labels Mobile App
|
| Languages | - Bulgarian
- Croatian
- Czech
- Danish
- Dutch
- English (US)
- Estonian
- Finnish
- French (France)
- German
- Hungarian
- Italian
- Norwegian
- Polish
- Portuguese (Portugal)
- Romanian
- Russian
- Slovak
- Slovenian
- Spanish (Spain)
- Swedish
- Turkish
|
| Application | - Asset Tracking
- Circuit Board Labeling
- Data and Telecommunications Labeling
- Electrical Labeling
- Facility Identification
- General Identification
- Safety Identification
- Wire and Cable Labeling
|
| Built-In Label Wizards | - Flags
- Patch Panel
- Terminal Block
- Wire Wrap
|
| Connectivity Options | Bluetooth |
| Cutter Type | Manual cut |
| Display Type | - Color LCD Screen
- LCD backlit graphics display
|
| Memory | 512 MB RAM, 256 MB Flash |
| Stand Alone Printing | PC connected & Stand-alone |
