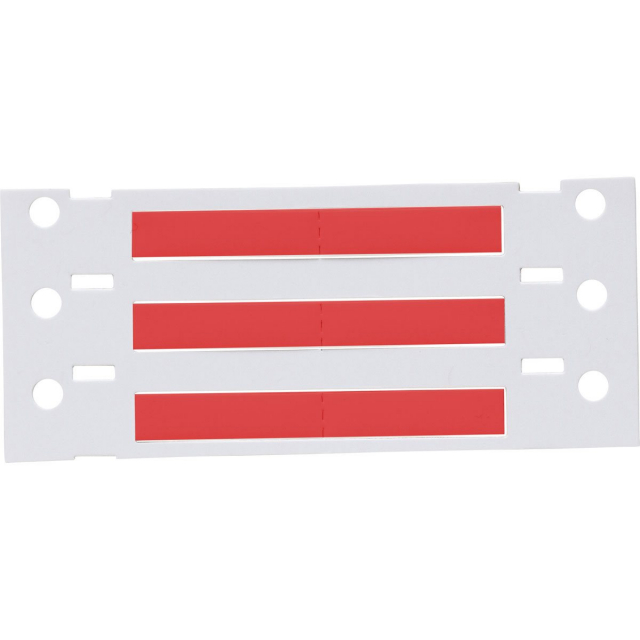

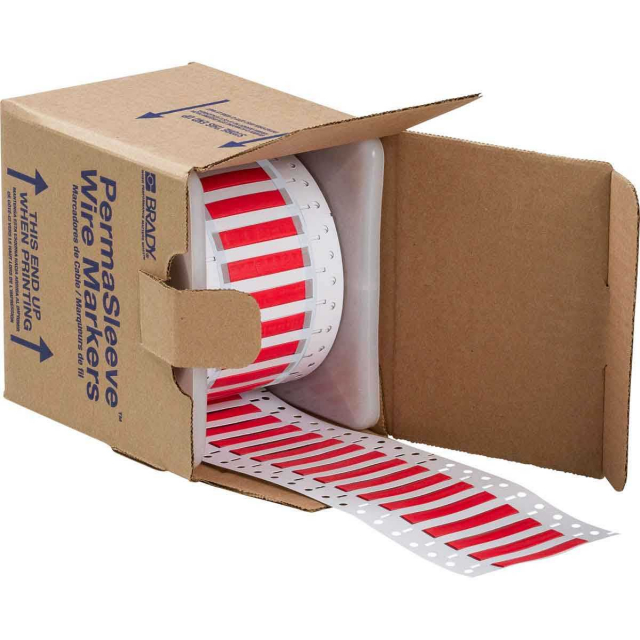

Brady, LSZH-187-2-RD-M-2, PermaSleeve Low Smoke Zero Halogen Heat Shrink 1" Red Labels for 3" Core Printers, 3/16 Dia.

Features:

Made of halogen-free, flexible, flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
Compatible with the most stringent requirements in the market today to enhance fire safety needs
2:1 heat-shrink ratio
Use with thermal transfer printers and Brady's R6000 Ink Series halogen-free ribbon
A ribbon is required to print this material. Use Part Number i75-R6007 for the Brady i7500 printer; use IP-R6007 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6007 for a different printer
This roll has i75-series smart properties on the core that when used in the Brady i7500 printer in conjunction with i75-series smart ribbons, eliminates the need to adjust heat, speed, sensor location and mode, eliminates the need to calibrate out blank wasted labels, and warns the operator if a non-approved ribbon is used with this roll.
If used in any other 3 inch core printer this roll will function as a manual roll

The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen-free identification material used for wire and cable identification.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions	0.335 in H x 1in W
Sleeve Size	0.187 in Dia x 1 in W
Vertical Repeat	0.625 in
Recovered Diameter	0.094 in
Recovered Wall Thickness	0.025 in
Web Width	3.49 in
Diameter as Supplied	0.187 in
Core Diameter	3 in
Material Number	B-7641 (View Technical Data Sheet)
Material	Heat-shrink Polyolefin
Material Properties	Flame-retardant, Heat-shrinkable, Low-smoke, Zero-halogen
Label Properties	Heat Shrink
Finish	Matte
Color	Red
Resistance Properties	Chemical-resistant, Corrosion-resistant, Humidity-resistant, Self-extinguishing, UV-resistant, Weather-resistant
Shrink Ratio	2:1
Service Temperature Range °F	-67 °F - 221 °F
Application	Data and Telecommunications Labeling, Electrical Labeling, Wire and Cable Labeling
Shape	Rectangle
Continuous or Die-cut	Die-cut
Printable Sides	Single-Side Printable
Quantity per Row	2
Sleeve Slits	Yes
Print Technology	Thermal Transfer
Printer Compatibility	i6100, i7100, i7500, THT 3" Core Printers
Recommended Ribbon	i75-R6002, i75-R6602, R6002, R6602
Wire Diameter Range	0.094 in - 0.151 in
Wire Gauge Range	16 AWG - 10 AWG

Notes
