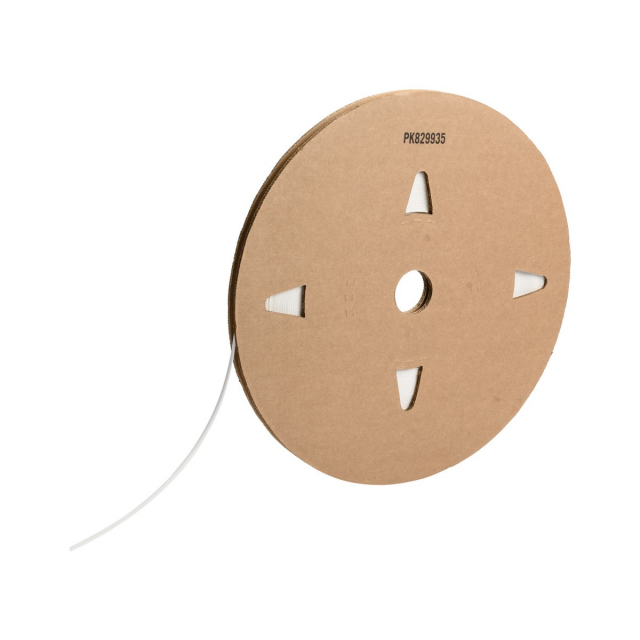

Buy Brady HX-C-187-WT-K, PermaSleeve Heat Shrink Labels, 0.335" x 360'

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size (in):: Size (in): 0.335

Brady, HX-C-187-WT-K, PermaSleeve 3" Core Heatex Polyolefin 16 to 10 Gauge Wire Marking Heat Shrink Labels, 0.335" x 360', White

Features:

Supplied roll form in a flattened format on a carrier designed for use with computer-driven printers
Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002,UL 224,VW-1
Tested per ASTM E162 and ASTM E662
Operating temperature of -40°F to 248°F (-40°C to 120°C)
Optimized for high-speed automation application
A ribbon is required to print this material - use part number R6606
This part must be mounted outside the printer and is not Labelsense compatible. The part can be run on the i7500 in manual mode

Heat shrink PermaSleeve® HX polyolefin (B-7642) wire marking sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions	0.335 in H x 360 ft L
Sleeve Size	0.187 in Dia x 360 ft L
Recovered Diameter	0.094 in
Recovered Wall Thickness	0.02 in
Diameter as Supplied	0.187 in
Core Diameter	1.625 in
Material Number	B-7642
Material	Heat-shrink Polyolefin
Material Properties	Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	White
Resistance Properties	Chemical-resistant, Corrosion-resistant, Humidity-resistant, Self-extinguishing, UV-resistant, Weather-resistant
Shrink Ratio	2:1
Service Temperature Range °F	-40 °F - 248 °F
Application	Wire and Cable Labeling
Continuous or Die-cut	Continuous
Printable Sides	Single-Side Printable
Print Technology	Thermal Transfer
Printer Compatibility	BBP72, i7100, i7500, THT 3" Core Printers
Recommended Ribbon	i75-R6406, R6406
Wire Diameter Range	0.062 in - 0.11 in
Wire Gauge Range	20 AWG - 16 AWG

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

WARNING: Cancer risk from exposure to Antimony Trioxide. For more information go to www.P65Warnings.ca.gov

Product Details

Dimensions	0.335 in H x 360 ft L
Sleeve Size	0.187 in Dia x 360 ft L
Recovered Diameter	0.094 in
Recovered Wall Thickness	0.02 in
Diameter as Supplied	0.187 in
Core Diameter	1.625 in
Material Number	B-7642
Material	Heat-shrink Polyolefin
Material Properties	Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Color	White
Resistance Properties	Chemical-resistant, Corrosion-resistant, Humidity-resistant, Self-extinguishing, UV-resistant, Weather-resistant
Shrink Ratio	2:1
Service Temperature Range °F	-40 °F - 248 °F
Application	Wire and Cable Labeling
Continuous or Die-cut	Continuous
Printable Sides	Single-Side Printable
Print Technology	Thermal Transfer
Printer Compatibility	BBP72, i7100, i7500, THT 3" Core Printers
Recommended Ribbon	i75-R6406, R6406
Wire Diameter Range	0.062 in - 0.11 in
Wire Gauge Range	20 AWG - 16 AWG

Note

Note: Please read description carefully. Do not base your order on the picture presented.
