Buy Brady B-FR22-MUX16-US, RFID Reader and MUX 16-Port Multiplexer Kit

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Package Includes:: Package Includes: RFID Reader and 16-Port Multiplexer Kit

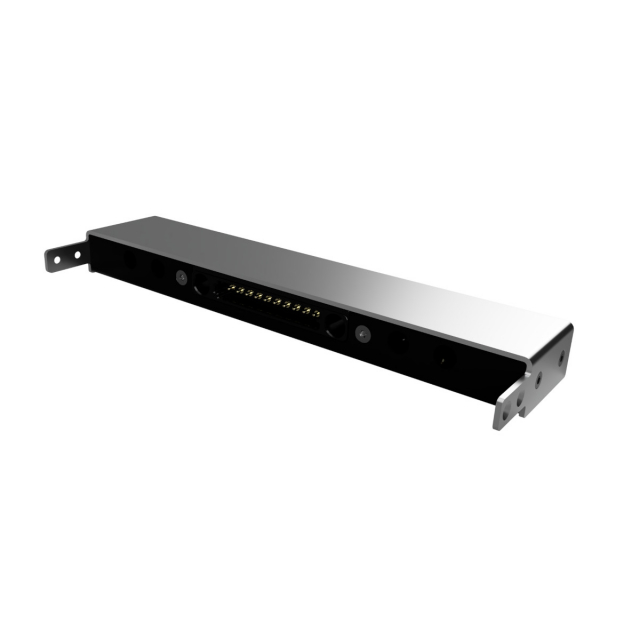

Brady, B-FR22-MUX16-US, Fixed RFID Reader and MUX 16-Port Multiplexer Kit

B-FR22-MUX16-US Includes Only:

Features:

Linux OS provides edge computing capabilities, allowing users to run plugins or applications directly on the FR22
Multiplexer extends the number of antenna ports from 4 to 16

Applications:

Get support for up to 16 RFID reading zones with the FR22 Fixed RFID Reader and 16-Port Multiplexer kit.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Central Processing Unit (CPU)	Quad-core A7 1.1GHz
Connectivity	Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g
Display Type	None
Memory	1 GB RAM
Power Supply Voltage	100 - 240 V at 50 - 60 Hz
Mounting Type	4 Screws (not included)
Power Requirements	Max 25.5 W. 4W idle
Operating System	Linux
ISO Conformance Standards	ISO 18000-63 (EPC Class 1Gen2v2)
Data Management	Nordic ID RADEA
API Support	NUR API for RFID and RESTful service to access reader configuration
Audio	Integrated Buzzer
Connector	Brady extension port

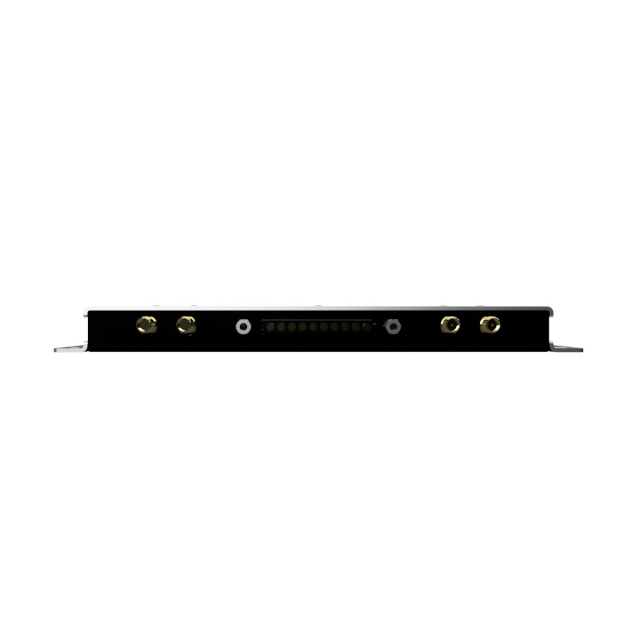

External Antenna Port	16 ports RP-SMA
HDMI	Video 1280 x 720 and 640 x 480 resolution
Ingress Protection Rating	IP20
RoHS Compliance Status	Compliant with 2011/65/EU and 2015/863 with exemptions
Reading Speed	Up to 1000 tags per second
Dimensions	0.69 in H x 8 in W x 4.76 in D
Weight	1.248 lb
Country of Origin	Finland
Device Indicators	4 LEDs indicating the enabled antennas, Application LED, Connection LED, Extension port LED, Power LED, RF LED
Color	Silver, Blue

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Central Processing Unit (CPU)	Quad-core A7 1.1GHz
Connectivity	Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g
Display Type	None
Memory	1 GB RAM
Power Supply Voltage	100 - 240 V at 50 - 60 Hz
Mounting Type	4 Screws (not included)
Power Requirements	Max 25.5 W. 4W idle
Operating System	Linux
ISO Conformance Standards	ISO 18000-63 (EPC Class 1Gen2v2)
Data Management	Nordic ID RADEA
API Support	NUR API for RFID and RESTful service to access reader configuration
Audio	Integrated Buzzer
Connector	Brady extension port
External Antenna Port	16 ports RP-SMA
HDMI	Video 1280 x 720 and 640 x 480 resolution
Ingress Protection Rating	IP20
RoHS Compliance Status	Compliant with 2011/65/EU and 2015/863 with exemptions
Reading Speed	Up to 1000 tags per second
Dimensions	0.69 in H x 8 in W x 4.76 in D
Weight	1.248 lb
Country of Origin	Finland
Device Indicators	4 LEDs indicating the enabled antennas, Application LED, Connection LED, Extension port LED, Power LED, RF LED
Color	Silver, Blue

Note: Please read description carefully. Do not base your order on the picture presented.
