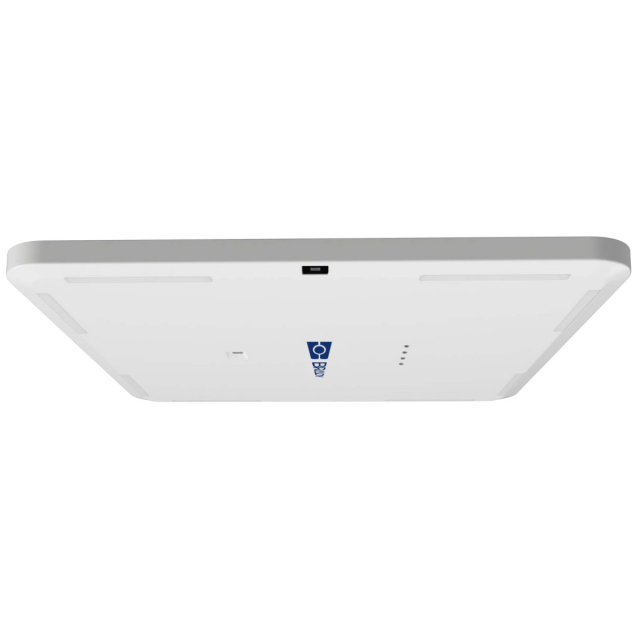

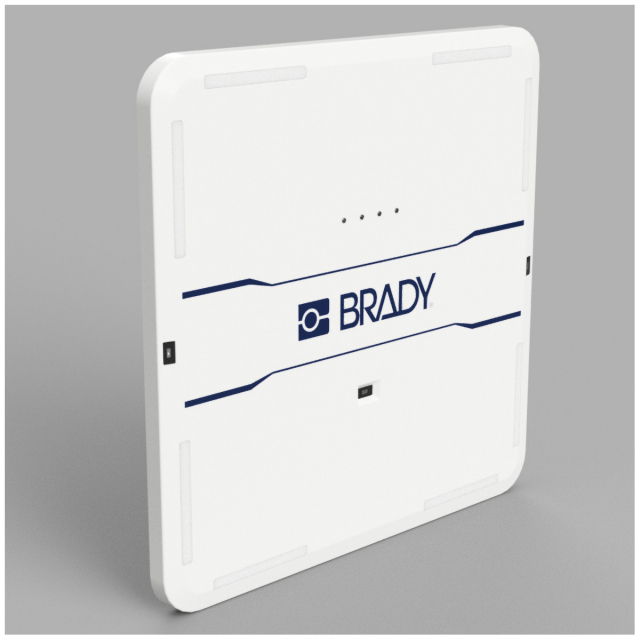

Buy Brady B-BFA-ANT-915, BFA915 RFID Antenna for FR22 Fixed RFID Reader

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Reliable object direction detection and environment mapping
Integrated loud buzzer and high visibility LEDs so it can be read in loud environments
VESA standard mounting

Applications:

Asset Tracking
Inventory and Inspection Labeling
RFID labeling
Temperature Indicating Labeling

Get advanced RFID reading coverage and accuracy with the BFA (Beam Forming Antenna). It features 28 software-controlled beams, plus an integrated movement and direction detection sensor.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Sensor	Time of flight sensor
Antenna Features	Max gain 8dBi
Beam Forming Features	28 individual beams with dual polarization
Front-to-back Ratio	20 dB
Connector	Brady extension port
Ingress Protection Rating	IP20
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Dimensions	16.967 in H x 16.967 in W x 0.831 in D
Beam Width	40° / 60°
Beam Tilt Angles	±15°, ±30°, ±45°, 0°
Weight	1.499 lb
Country of Origin	Finland
Device Indicators	8 high visibility LED bars, Buzzer for sound indications
Color	Blue, White
For Use With	Brady FR22 Fixed Reader

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Sensor	Time of flight sensor
Antenna Features	Max gain 8dBi
Beam Forming Features	28 individual beams with dual polarization
Front-to-back Ratio	20 dB
Connector	Brady extension port
Ingress Protection Rating	IP20
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Dimensions	16.967 in H x 16.967 in W x 0.831 in D
Beam Width	40° / 60°
Beam Tilt Angles	±15°, ±30°, ±45°, 0°
Weight	1.499 lb
Country of Origin	Finland
Device Indicators	8 high visibility LED bars, Buzzer for sound indications
Color	Blue, White
For Use With	Brady FR22 Fixed Reader
