Options and Related Products

Size (in):: Size (in): 3 x 2

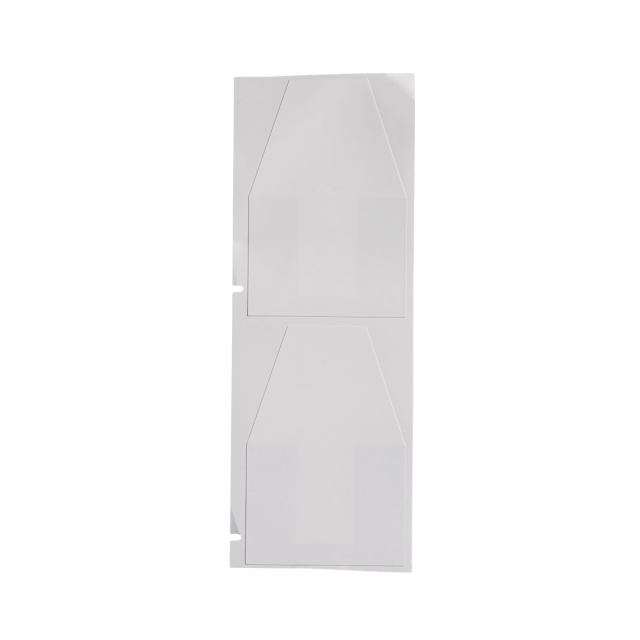

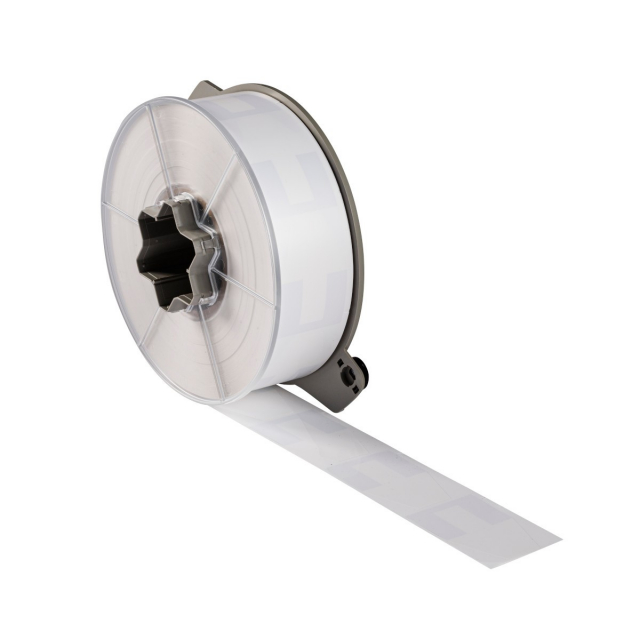

Brady, A55-21-483, QuickFlag 3" x 2" Tapered Wire and Cable Flag Labels for A5500 Printer

Features:

Non-adhesive one-sided printable area and tapered adhesive wrap-around tail for fast cable flagging
Patent-pending design with a tapered adhesive side to create easy-to-apply wire and cable flags without mismatched edges or exposed adhesive
Eliminates tedious edge alignment to make the flagging process faster with fewer re-wraps and wasted flags
Tough polyester material resists abrasions, temperatures of -40° to 248°F (-40° to 120°C) and solvents such as fuel, oil and water
Ultra-aggressive rubber-based adhesive on the tapered side enables permanent use
UL Recognized to UL969, CSA accepted, and RoHS Compliant to 2011/65/EU (Pass 2015/863)
For material-specific performance and properties, please refer to the Technical Data Sheet (TDS)
A ribbon is required to print this material; use part number SSR6006

Easily flag wires and cables with QuickFlag™ label material (B-483), featuring a tapered design to prevent mismatched edges and make flag installation much faster.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions	3 in H x 2 in W
Label/Tape Size	3 in H x 2 in W
Printable Area Dimensions	1.500 in H x 2.000 in W
Thickness	0.004 in
Vertical Repeat	3.125 in
Web Width	2.29 in
Core Diameter	3 in
Material Number	B-483A
Material	Polyester
Label Properties	Aggressive Adhesive, Heat Resistant, Low Temperature
Adhesive Type	Permanent Rubber
Finish	Gloss
Color	White
Resistance Properties	Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant
Service Temperature Range °F	-40 °F - 248 °F
Compatible Surface Types	Low Surface Energy
Application	Wire and Cable Labeling
Shape	Pyramid
Continuous or Die-cut	Die-cut
Corner Type	Rounded
Quantity per Row	1
Print Technology	Thermal Transfer
Printer Compatibility	A5500
Recommended Ribbon	SSR6006
Wire Diameter Range	0.06 in - 0.19 in
Pre-Printed Areas on Label	None
Overlaminate Included	No
Secondary Label Included	Secondary Label is Not Included

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions	3 in H x 2 in W
Label/Tape Size	3 in H x 2 in W
Printable Area Dimensions	1.500 in H x 2.000 in W
Thickness	0.004 in
Vertical Repeat	3.125 in
Web Width	2.29 in
Core Diameter	3 in
Material Number	B-483A
Material	Polyester
Label Properties	Aggressive Adhesive, Heat Resistant, Low Temperature
Adhesive Type	Permanent Rubber
Finish	Gloss
Color	White
Resistance Properties	Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant
Service Temperature Range °F	-40 °F - 248 °F
Compatible Surface Types	Low Surface Energy
Application	Wire and Cable Labeling
Shape	Pyramid
Continuous or Die-cut	Die-cut
Corner Type	Rounded
Quantity per Row	1
Print Technology	Thermal Transfer
Printer Compatibility	A5500
Recommended Ribbon	SSR6006
Wire Diameter Range	0.06 in - 0.19 in
Pre-Printed Areas on Label	None
Overlaminate Included	No
Secondary Label Included	Secondary Label is Not Included

Note

Note: Please read description carefully. Do not base your order on the picture presented.
