| Key Characteristics |

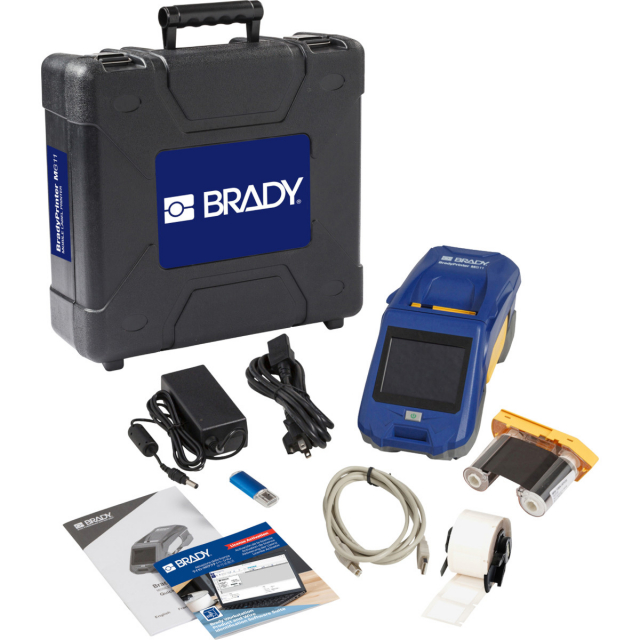

| Trade Name | BradyPrinter M611 |
| Brand Name | Brady® |
| Country of Origin | Malaysia |
| HTS Code (Harmonized Tariff Schedule) | 8471.60.8000 |
| ECCN (Export Commodity Control Number) | EAR99 |
| Dimensions |
| Dimensions | 4.55 in H x 4.46 in W x 10.97 in D |
| Height | 4.55 in |
| Width | 4.46 in |
| Depth | 10.97 in |
| Display Size | 3.5 in |
| Weight | 3.52 lb |
| Material Characteristics |
| Color | Blue, Gray |
| Product Features |
| Application | Asset Tracking, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Laboratory Labeling, Safety Identification, Wire and Cable Labeling |
| Shipped With Battery | Yes |
| How Is Battery Shipped | Shipped installed in equipment |
| Battery mAh Rating | 3200 mAh |
| Battery Weight (metric) | 0.46 lb |
| Battery Weight | 0.46 lb |
| Built-In Label Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap |
| Connectivity Options | Bluetooth® 5 Low Energy (class II), USB, USB 2.0, Wi-Fi |
| Cutter Type | Auto Cutter |
| Display Type | Color Touch Screen, LCD backlit graphics display |
| Keyboard Type | None |
| Memory | 256 MB Flash, 512 MB RAM |
| Stand Alone Printing | Mobile device connected |
| Device Connectivity | Mobile device connected |
| Number of Symbols | Dependant on software |
| Plug Type | US |
| Power Supply Voltage | 110 - 240 V |
| Auto Shut-Off / Power Conserve | User Configurable |
| Recharge Time | 4.5 hours |
| Special Characters Quantity | Determined by software |
| User Interface Type | Mobile device, PC, Touch Screen |
| Battery Type | Rechargeable Lithium-ion Battery |
| Printing Specifications |
| Barcode Symbologies - 2D | Data Matrix, More through Brady WorkStation, PDF417, QR code |
| Barcode Symbologies - Linear | Code 128A, Code 128B, Code 128C, Code 39, GS1 DataBar, HIBC, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E |
| Calibration Required? | Automated through Smart Cell |
| Color Printing Capability | Single Color |
| Font Sizes | Determined by software |
| Font Styles | Determined by software |
| Label Retention Feature | Yes |
| Maximum Labels per Day | 750 |
| Maximum Print Speed | 2.00 in/s |
| Minimum Label Length | 0.236 in |
| Print Resolution | 300 dpi |
| Minimum Liner Width | 0.812 in |
| Print Technology | Thermal Transfer |
| On Screen Indicators | Battery Life, Bluetooth Status, Error Messaging, Ribbon and label part number recognition, Supply Remaining, WiFi |
| Device Drop Test & Durability | Resistant to 6-foot drops, Resistant to military-grade shocks (MIL-STD-810G) |
| Compatibility |
| Compatible Media | BM-, BMC-, M6-, M6C- |
| Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyethylene, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth |
| Continuous & Die-Cut Materials Supported | Continuous and Die-cut |
| Custom Labels | Yes |
| Maximum Label/Tape Width | 2 in |
| Maximum Print Width | 2 in |
| Maximum Printed Label Length | 40 in |
| Maximum Liner Width | 2.25 in |
| Phones & Tablets Supported | Android devices with Android OS 5+, iPhone 5S or newer with iOS 10+ |
| Software Compatibility | Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use |
| Languages | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish |
| Compliance |
| UNSPSC | 45101520 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
