Options and Related Products

Quantity per Roll:: Quantity per Roll: 7000 pcs

Brady, 3PS-187-2-WT-3, 104720 0.335" Polyolefin Wire Marking Sleeve, 7K Labels

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
Fade-resistant and smudge-proof for superior aesthetic appearance
Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202; RoHS Compliant; and UL Recognized

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Unit of Measure	Roll of 7500 pcs
Quantity per Roll	7500
Material Number	B-342
Diameter as Supplied	0.187 in
Dimensions	0.335 in H
Finish	Matte
Maximum Service Temperature °F	275 °F
Maximum Wire Diameter	0.15 in
Maximum Wire Gauge	10 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter	0.062 in
Minimum Wire Gauge	20 AWG
Printable Sides	Double-Side Printable
Product Number	104720
Recovered Diameter	0.062 in
Roll Width	2 in
Shrink Ratio	3:1

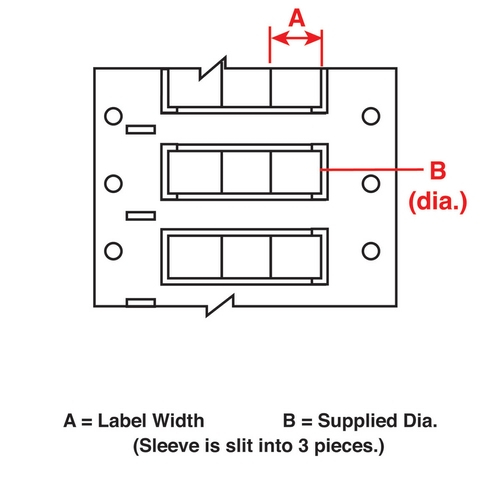

Sleeve Size	0.187 in Dia x 0.67 in W
Sleeve Size(m)	4.8 mm Dia x 17 mm W
Sleeve Slits	Yes
Sleeve Width	0.67 in
Trade Name	PermaSleeve
Applications	Cable and Wire Marking
Color	White
For Use with Printer	BBP 72 Label Printer, BRADY IP Series Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
Label/Media Format	Roll
Label Properties	Heat Shrink Sleeves
Material	Polyolefin
Material Properties	Flame-retardant, Heat-Shrinkable
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R2000, R4300, R4502S, R5000, R6600, R6700

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer www.P65Warnings.ca.gov

Product Details

Unit of Measure	Roll of 7500 pcs
Quantity per Roll	7500
Material Number	B-342
Diameter as Supplied	0.187 in
Dimensions	0.335 in H
Finish	Matte
Maximum Service Temperature °F	275 °F
Maximum Wire Diameter	0.15 in
Maximum Wire Gauge	10 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter	0.062 in
Minimum Wire Gauge	20 AWG
Printable Sides	Double-Side Printable
Product Number	104720
Recovered Diameter	0.062 in
Roll Width	2 in
Shrink Ratio	3:1
Sleeve Size	0.187 in Dia x 0.67 in W
Sleeve Size(m)	4.8 mm Dia x 17 mm W
Sleeve Slits	Yes
Sleeve Width	0.67 in
Trade Name	PermaSleeve
Applications	Cable and Wire Marking
Color	White
For Use with Printer	BBP 72 Label Printer, BRADY IP Series Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
Label/Media Format	Roll
Label Properties	Heat Shrink Sleeves
Material	Polyolefin
Material Properties	Flame-retardant, Heat-Shrinkable
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R2000, R4300, R4502S, R5000, R6600, R6700

Note

Note: Please read description carefully. Do not base your order on the picture presented.
