Brady 2HX-500-2-WT-J Double Sided Wire Marking Sleeve

Size: 0.5" Dia. x 2", Color: White
  • Brand Brady
  • Part # 2HX-500-2-WT-J
  • Model # 117471
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 0.5" Dia. x 2"
Color:
Color: White

Brady, 2HX-500-2-WT-J, 117471 0.5" Dia. x 2" White PermaSleeve HX Heat Shrink Double Sided Wire Marking Sleeve, 1" Core

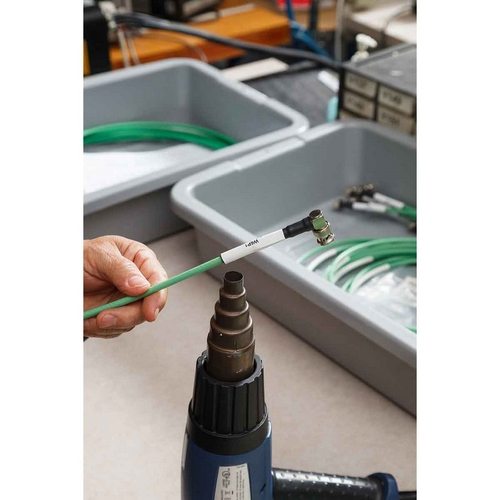

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

  • Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
  • RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002;
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Unit of MeasureRoll of 2500 pcs
Quantity per Roll2500
Material NumberB-7642
Diameter as Supplied0.5 in
Dimensions0.851 in H
Maximum Service Temperature °F248 °F
Maximum Wire Diameter0.45 in
Maximum Wire Gauge1 AWG
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter0.25 in
Minimum Wire Gauge6 AWG
Printable SidesDouble-Side Printable
Recovered Diameter0.25 in
Roll Width2 in
Shrink Ratio2:1

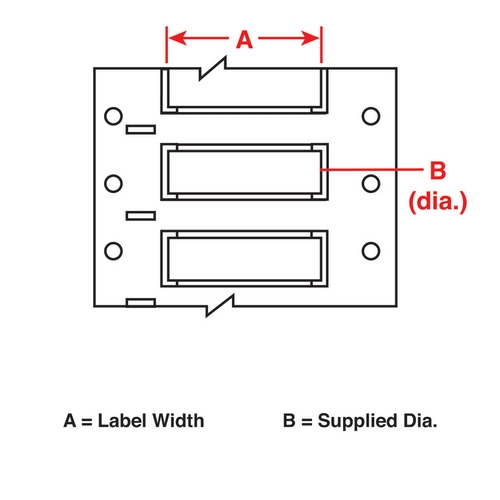

Sleeve Size0.5 in Dia x 2 in W
Sleeve Size(m)12.7 mm Dia x 50.8 mm W
Sleeve Width2 in
Trade NamePermaSleeve
ApplicationsCable and Wire Marking
ColorWhite
For Use with PrinterBradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media FormatRoll
MaterialPolyolefin
Material PropertiesHeat-Shrinkable
Print TechnologyThermal Transfer
Resistance PropertiesChemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Suggested Ribbon SeriesR4300, R6000, R6400, R6600
Label PropertiesHeat Shrink Sleeves
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warningWARNING: Cancer www.P65Warnings.ca.gov

Product Details
Unit of MeasureRoll of 2500 pcs
Quantity per Roll2500
Material NumberB-7642
Diameter as Supplied0.5 in
Dimensions0.851 in H
Maximum Service Temperature °F248 °F
Maximum Wire Diameter0.45 in
Maximum Wire Gauge1 AWG
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter0.25 in
Minimum Wire Gauge6 AWG
Printable SidesDouble-Side Printable
Recovered Diameter0.25 in
Roll Width2 in
Shrink Ratio2:1
Sleeve Size0.5 in Dia x 2 in W
Sleeve Size(m)12.7 mm Dia x 50.8 mm W
Sleeve Width2 in
Trade NamePermaSleeve
ApplicationsCable and Wire Marking
ColorWhite
For Use with PrinterBradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media FormatRoll
MaterialPolyolefin
Material PropertiesHeat-Shrinkable
Print TechnologyThermal Transfer
Resistance PropertiesChemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Suggested Ribbon SeriesR4300, R6000, R6400, R6600
Label PropertiesHeat Shrink Sleeves
Note

Note: Please read description carefully. Do not base your order on the picture presented.
