Color:: Color: Red

Brady, 2HX-375-2-RD-S, 3" Core PermaSleeve Heatex Polyolefin 8 to 4 Gauge Wire Marking Sleeves

Features:

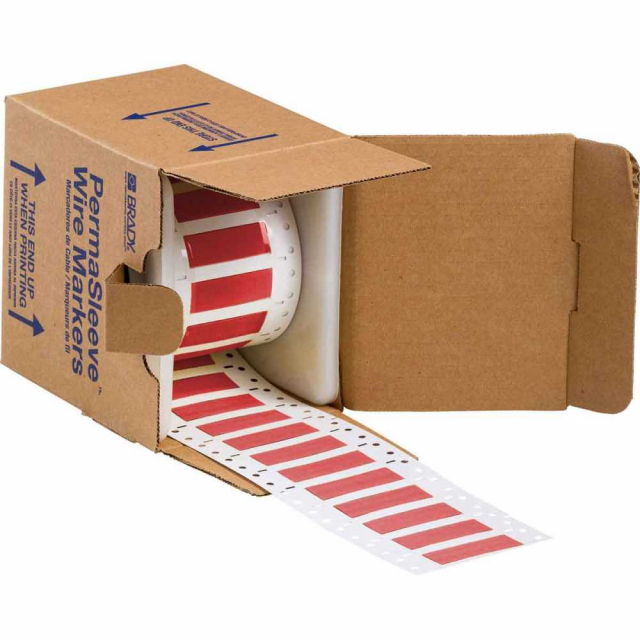

Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
Tested per ASTM E162 and ASTM E662
Operating temperature of -40°F to 248°F (-40°C to 120°C)
A ribbon is required to print this material. Use Part Number R6402

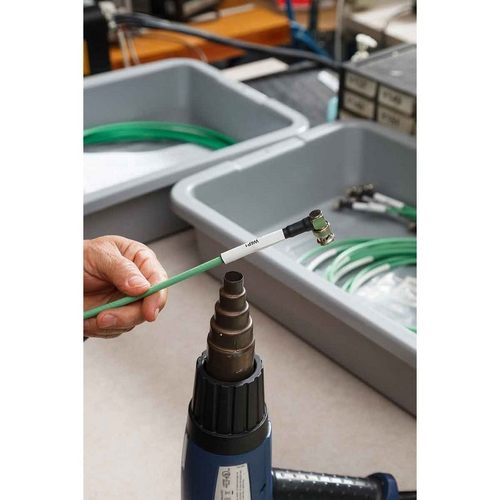

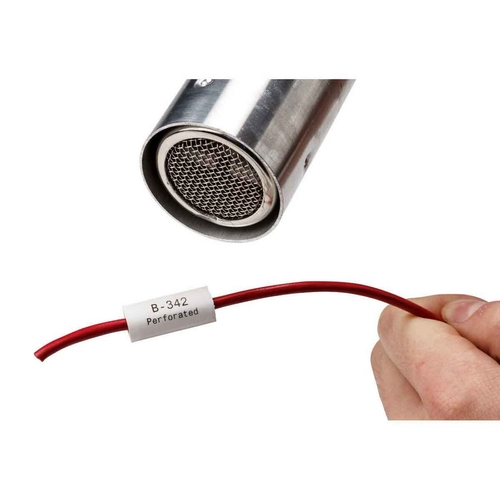

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

Unit of Measure	Roll of 250 Pcs

Unit of Measure

Roll of 250 Pcs

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions	0.645 in H x 2 in W
Height	0.645 in
Width	2 in
Roll Width	2 in

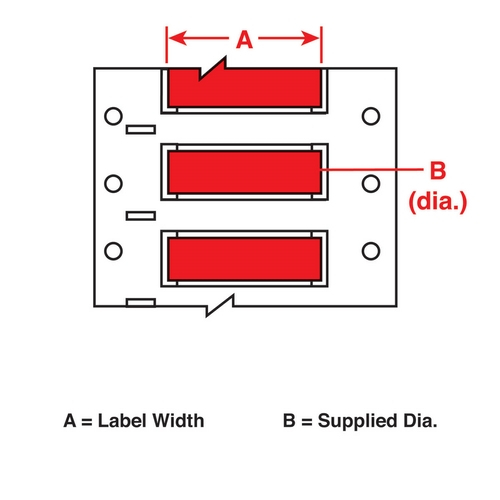

Sleeve Size	0.375 in Dia x 2 in W
Sleeve Width	2 in
Vertical Repeat	1 in
Recovered Diameter	0.188 in
Recovered Wall Thickness	0.025 in
Web Width	3.49 in
Diameter as Supplied	0.375 in
Core Diameter	3 in
Material Number	B-7642
Material	Heat-shrink Polyolefin
Material Properties	Heat-shrinkable
Label Properties	Heat Shrink
Finish	Matte
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Shrink Ratio	2:1
Service Temperature Range °F	-40 °F - 248 °F
Minimum Service Temperature °F	-40 °F
Minimum Service Temperature °F	-40 °F
Maximum Service Temperature °F	248 °F
For Use with Printer	BBP®72 Double-sided Sleeve Printer, BradyPrinter i7100 Industrial Label Printer, BradyPrinter PR Plus Series Label Printer, THT 3" Core Printers
Recommended Ribbon	R6402
Suggested Ribbon Series	R4300, R6000 Halogen Free, R6400, R6600
Wire Diameter Range	0.188 in to 0.32 in
Wire Gauge Range	8 AWG - 4 AWG
Color	Red
