Buy Brady 2HT-125-2-PK-S-2, 20 to 16 Gauge Wire Marking Sleeve, Pink

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

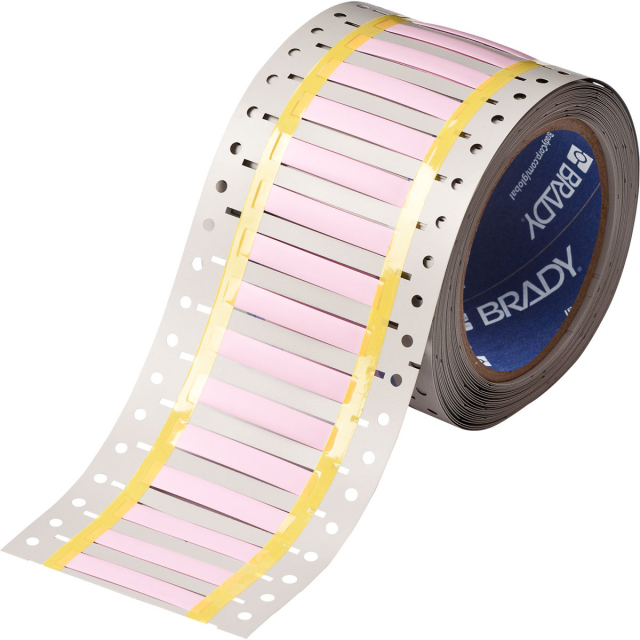

Brady, 2HT-125-2-PK-S-2, Core PermaSleeve High Temperature 20 to 16 Gauge Wire Marking Sleeves, Pink, 0.125 in Dia x 1 in W

Features

PermaSleeve Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662; RoHS Compliant; and UL Recognized
Operating temperature range of -67 to 437° F (-55 to 225° C)

Unit of Measure	Roll
Roll of	1000 pcs

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions	0.235 in H
Height	0.235 in
Roll Width	2 in
Sleeve Size	0.125 in Dia x 1 in W
Sleeve Width	1 in
Vertical Repeat	0.5 in
Recovered Diameter	0.062 in
Diameter as Supplied	0.125 in
Material	Polyvinylidene Fluoride
Material Properties	Flame-retardant, Heat-Shrinkable
Label Properties	Heat Shrink Sleeves
Finish	Matte
Color	Pink
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, High Temperature-Resistant, Humidity-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	2:1
Indoor or Outdoor Use	Outdoor Use
Minimum Service Temperature degrees F	-67 deg F
Maximum Service Temperature degrees F	437 deg F

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Dimensions	0.235 in H
Height	0.235 in
Roll Width	2 in
Sleeve Size	0.125 in Dia x 1 in W
Sleeve Width	1 in
Vertical Repeat	0.5 in
Recovered Diameter	0.062 in
Diameter as Supplied	0.125 in
Material	Polyvinylidene Fluoride
Material Properties	Flame-retardant, Heat-Shrinkable
Label Properties	Heat Shrink Sleeves
Finish	Matte
Color	Pink
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, High Temperature-Resistant, Humidity-Resistant, UV-Resistant, Weather-Resistant
Shrink Ratio	2:1
Indoor or Outdoor Use	Outdoor Use
Minimum Service Temperature degrees F	-67 deg F
Maximum Service Temperature degrees F	437 deg F

Note: Please read description carefully. Do not base your order on the picture presented.
