Brady, 2HT-1000-2-WT-S-2 129769 1" Diax1" White IP High Temp PVDF Wire Marking Sleeve

Brand:
Brady
Part #
2HT-1000-2-WT-S-2
Model #
129769
UPC #
662820653158
Condition:
Brand New
Factory packed
Factory warranty
Manufacturer List Price: $535.99
Availability:
Typically In Stock
Unit of Measure:
Roll of 200 pcs
Package Quantity:
1 Roll
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.
Product Details
Description
Specification
Description

Description

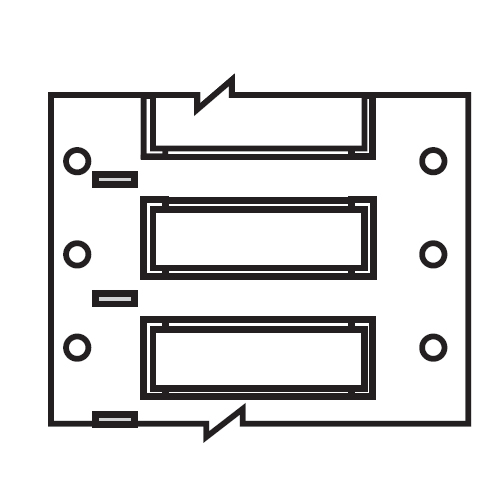

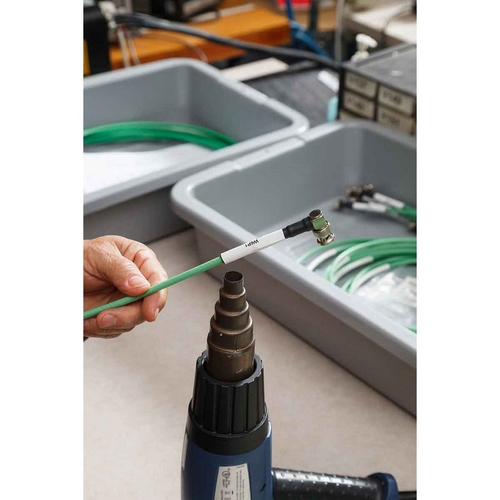

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.

  • 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
  • Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
  • Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662; RoHS Compliant; and UL Recognized
  • Operating temperature range is -55°F to 225°F (-48°C to 107°C)
Specification

Specification

Material NumberB-345
Diameter as Supplied1 in
Dimensions1.66 in H
UOMRoll of 200 Each
Maximum Service Temperature °F267 °F
Maximum Wire Diameter0.95 in
Minimum Service Temperature °F-94 °F
Minimum Wire Diameter0.45 in
Minimum Wire Gauge2/0 AWG
Printable SidesDouble-Side Printable
Product Number129769
Quantity per Roll200
Quantity per Row2
Recovered Diameter0.45 in
Roll Width2 in
Shrink Ratio2:1
Sleeve Size1 in Dia x 1 in W
Sleeve Size(m)25.4 mm Dia x 25.4 mm W
Sleeve SlitsYes
Sleeve Width1 in
Trade NamePermaSleeve®
ApplicationsCable & Wire Marking
ColorWhite
For Use with PrinterBRADY IP® Series Label Printer, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media FormatRoll
MaterialPolyvinylidene Fluoride
Material PropertiesHeat-Shrinkable
Print TechnologyThermal Transfer
Resistance PropertiesChemical-Resistant, Corrosion-Resistant, High Temperature-Resistant, Humidity-Resistant, UV-Resistant, Weather-Resistant
Suggested Ribbon SeriesR6000
