Black Box, PP-ST-50MM-6PAK, PP-ST-50MM-6PAK Includes Only:
- (1) S9 Dante Copper or Fiber Encoder
- (1) 12-VDC, 3-A Power Adapter (with US/UK/EU/AU Cord)
- (1) 3.5-MM, 4-Pin Phoenix Connector
- (1) IR Emitter
- (2) Mounting Ears (with Screws)
Features:
- Pre-polished ferrules for fast connections in the field.
- Easy assembly with no need for epoxy.
- Fiber can be reseated.
- Factory polishing eliminates loss concerns.
- Meets TIA/EIA 568A performance requirements and TIA/EIA 604 (focis) connector interface specifications.

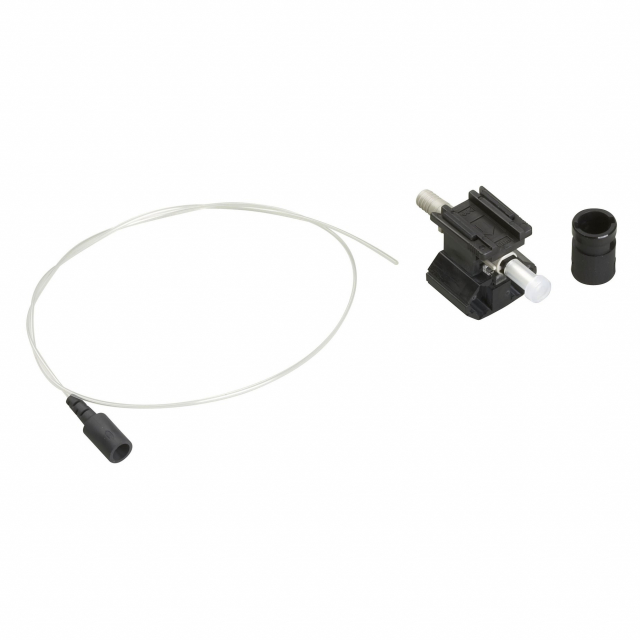

This Pre-Polished Fiber Optic Connector can save technicians a ton of time in the field. These connectors are so easy to install, you can do it in a minute! There's no hand polishing. No epoxy!
Proven mechanical splice technology ensures precise fiber alignment. A factory pre-cleaved, factory-polished ferrule couples to the fiber being terminated with precise mechanical alignment. A proprietary index-matching gel ensures a low loss termination to 50-micron multimode optical fibers. There are no expensive tools, no messy epoxy needed.
A factory-installed wedge clip holds the clamping device open while the fiber is inserted. This clip also enables the use of a Visible Fault Identifier (VFI) to provide a "pass/fail" signal once physical contact is achieved. The connector is compatible with 250-um and 900-um optical fibers.
