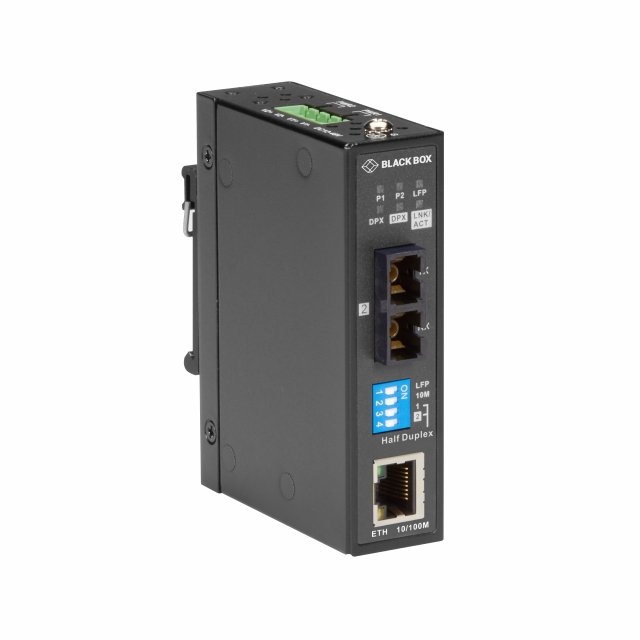

Black Box, LMC281A, LMC280 Series Fast Ethernet (100-Mbps) Industrial Media Converter - 10/100-Mbps Copper to 100-Mbps Multimode Fiber, 1310nm, 2km, SC
LMC281A Includes Only:
- (1) FAST ETHERNET INDUSTRIAL MEDIA CONVERTER MM SC
- (1) WALLMOUNTING KIT (2 BRACKETS, 8 SCREWS)
- (1) DIN RAIL MOUNTING KIT (INSTALLED)
- (1) 6-POSITION PHOENIX CONNECTOR
- (1) DUST COVER
Features:
- Convert 10/100Base-T(X) to 100BaseFX
- Auto-negotiation and auto-MDI/MDIX
- Supports Ethernet to fiber port
- DIN rail or wall mount
- High reliability and rigid IP-30 housing
- Link fault pass through
The Fast Ethernet Industrial Media Converter provides a cost-effective way to add fiber to your existing network infrastructure. It converts 10/100Base-T(X) to 100BaseFX with ease. Additionally, this media converter supports MDI/MDIX auto detection, so you do not need to use crossover wires.

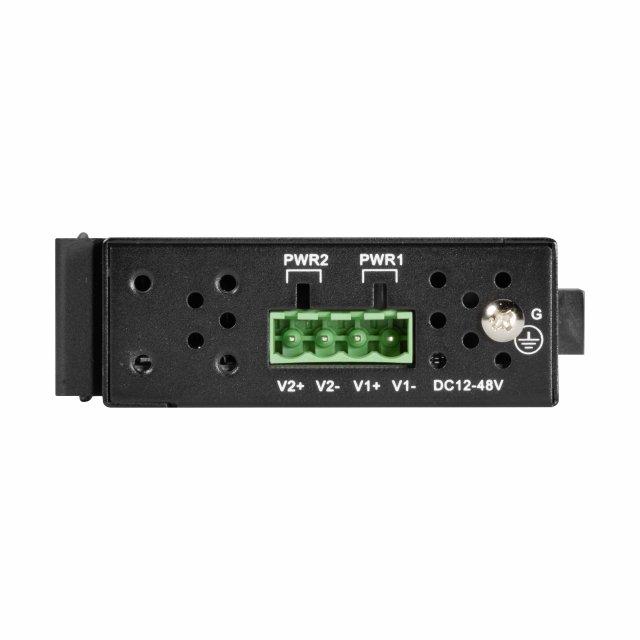

This media converter provides consistent network performance in the harshest work environments on earth. It features rigid IP-30 housing, an operating temperature range of -40° to 158° F, and has dual power inputs that each accept a wide voltage range (12 to 48 VDC).
When one side of your network link fails, the other side continues transmitting packets and waits for a response that never arrives from the disconnected side. Link fault pass-through forces the active link to shut down as soon as it notices the other link has failed, giving the application software a chance to fix the issue. This maximizes the uptime of your network.
