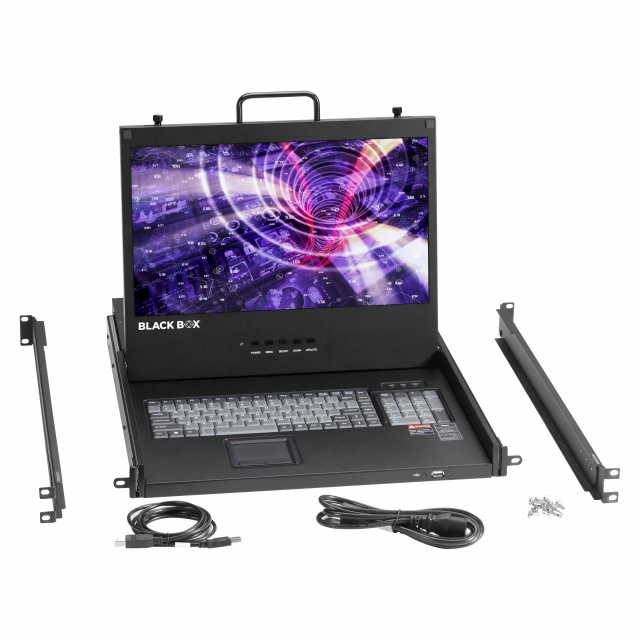

Black Box, KVT617A-US, ServView HD KVM LCD Console Tray 17" Single-Rail Touchpad LED Backlight USB HDMI DisplayPort VGAKVT617A-US Includes Only:
- (1) 17" KVM Tray
- (2) 19" Rails (20.5" min, 35.7" max)
- (1) US Power Cord
- (1) India BIS Compliant Cord
- (1) USB Cable, Type A to B, M/M
- (12) Rack Screws
- (1) QIG
Features:
- Consists of a 17.3" power-saving LED-backlit display, country-specific keyboard, and touchpad
- Choose from VGA, DisplayPort, and HDMI video inputs and outputs
- Mounts in a 19-inch system rack (1U)
- Supports Full HD 1080p, 1920 x 1080 at 60 Hz
- Fits in a 20.5 to 35.8 inches (52 to 91 cm) deep rack/cabinet with adjustable mounting bracket
- Front USB Hub supports USB HID (KB/MS) and storage devices

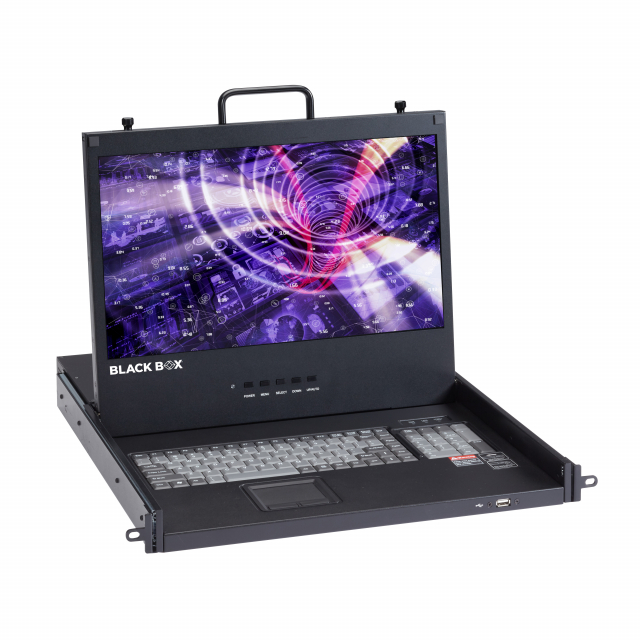

Need to control multiple servers in your equipment rack or network? The Black Box LCD Console Drawer is up to the task! The rack console drawer combines a 17.3" LED-backlit display, keyboard, and touchpad in only 1U of valuable rack space. With built-in USB, HDMI, DisplayPort, VGA interfaces, it can support a variety of KVM switches for multiple server management. The rack console drawer also provides an extra local console for extended local operations. It's perfect for the administration of servers in data centers, server rooms, and labs.
State-of-the-Art LCD Panel
The rack console drawer features a power-saving LED-backlit 17.3-inch LCD panel.

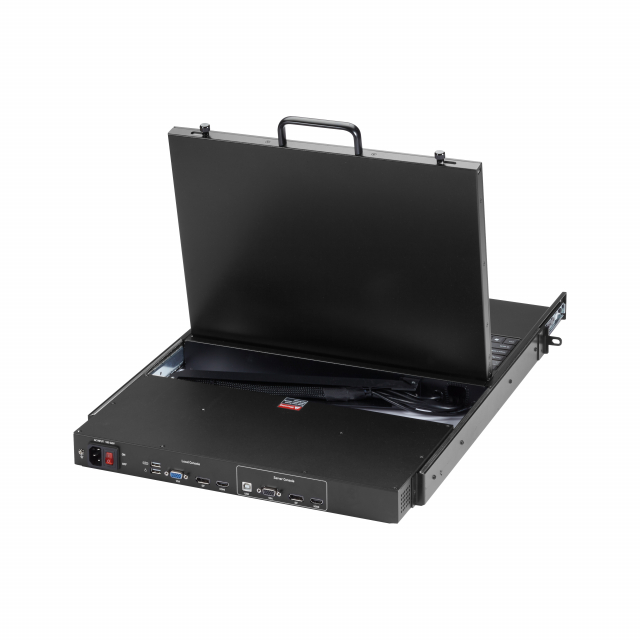

Flexible Interface
This flexible unit supports USB, VGA, DisplayPort, and HDMI connections, so you can choose your video interface. And a front USB Hub supports USB HID (KB/MS) and storage devices.
High-Resolution
With a video resolution of up to 1920 x 1080 at 60 Hz, 1080p, you experience crisp, clear, viewing. The LCD supports 300 cd/m2 brightness for use in dark server rooms. To further enhance clarity, you can view the screen at an 89 x 89 degree horizontal/vertical angle.

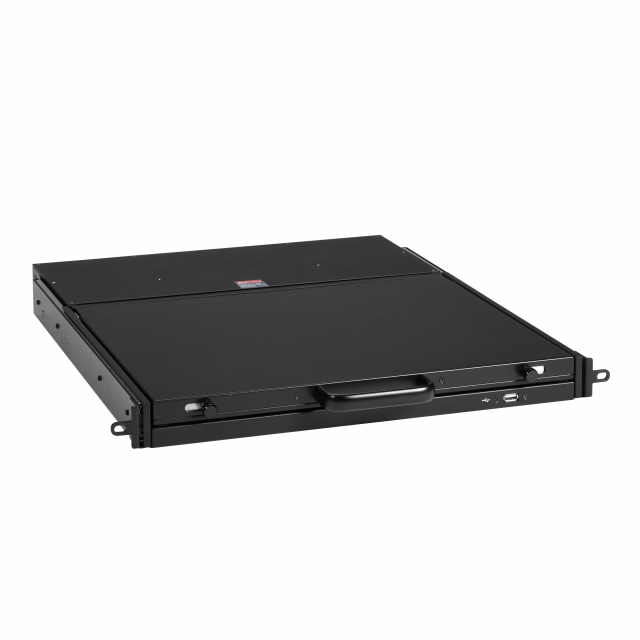

Display Stays in the Correct Position
The display remains in the desired "opening angle" and automatically turns the video off when you fold the frame down below a 30-degree angle to protect the screen lifetime.
Embedded Power Supply Fuels the Unit
The drawer features a 12 V, 5.42-A integrated power supply.

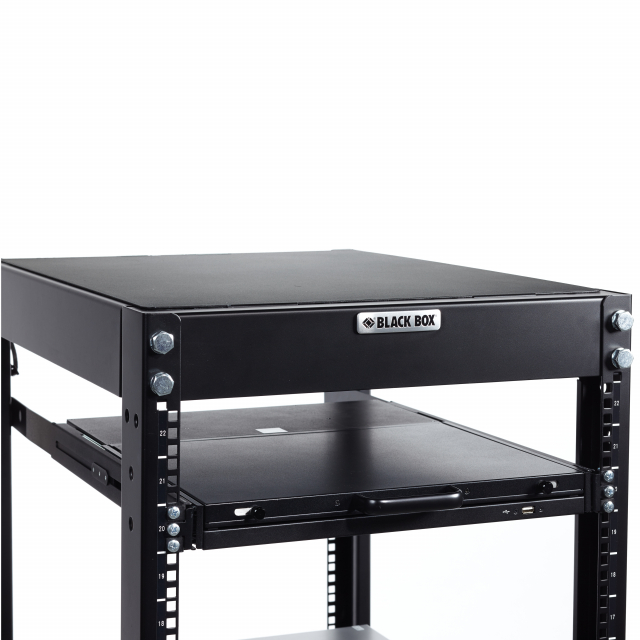

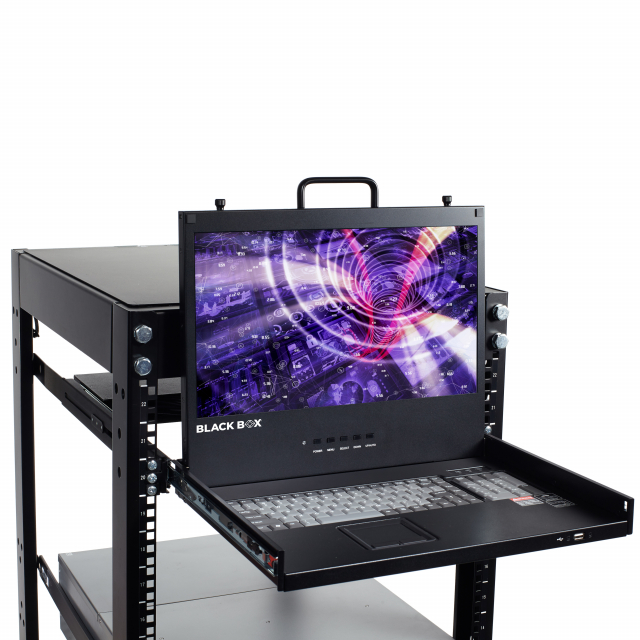

Adjusts to Fit Your Cabinet or Rack
Easy to install, the drawer uses its adjustable mounting bracket to fit racks/cabinets 20.5 to 35.8 inches (52 to 91 cm) deep.
Works in Your Part of the Globe
The keyboard/touchpad module easily swaps out to support various languages, including English, German, French, Japanese, and others in demand. (Contact us for details.)Control servers in data centers, server rooms, and labs from a single console that uses only 1U of rack space.
