Buy BlackBox KV9704A, ServSwitch 4-Port DT KVM Switch

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Model:: Model: DT KVM Switch DisplayPort with USB & Audio

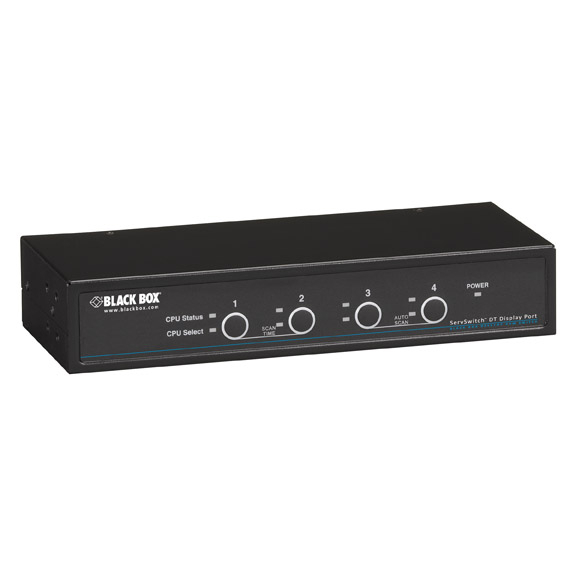

BlackBox, KV9704A, ServSwitch 4-Port DT KVM Switch DisplayPort with USB & Audio

ServSwitch DT KVM Switch DisplayPort with USB and Audio, 4-Port. Support for high-resolution video over DisplayPort connections in a desktop KVM switch.

Quick Facts

Supports DisplayPort, a new video standard, with high resolution video up to UXGA (1600 x 1200), full HD (1920 x 1080), and WUXA (1920 x 1200), and WQXGA (2560 x 1600, dual-link).
A unique switching system enables the USB or audio devices to operate independently.

Further Details

Supports USB consoles.
Four computers share up to four different USB peripherals.
Front-panel push buttons and hotkey functions for easy computer selection.
Activate autoscan by pressing front buttons.
Support keyboard and mouse plug-and-play.
No software required.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

Operating Systems	Windows and Mac
Connectors	Console: (1) DisplayPort F; (4) USB Type A F ([1] for keyboard, [1] for mouse, [2] for USB 2.0 devices); CPU: (4) DisplayPort F; (4) USB Type B F; (8) 3.5-mm female for audio and mic; Power: (1) 2.5-mm barrel connector for input, 9-12 VDC
CE Approval	Yes
RoHS	Yes
Power	External in-line power supply ITE
Size	1.7"H x 8.7"W x 5.1"D (4.3 x 22.1 x 12.9 cm)
Weight	1.5 lb. (0.7 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Operating Systems	Windows and Mac
Connectors	Console: (1) DisplayPort F; (4) USB Type A F ([1] for keyboard, [1] for mouse, [2] for USB 2.0 devices); CPU: (4) DisplayPort F; (4) USB Type B F; (8) 3.5-mm female for audio and mic; Power: (1) 2.5-mm barrel connector for input, 9-12 VDC
CE Approval	Yes
RoHS	Yes
Power	External in-line power supply ITE
Size	1.7"H x 8.7"W x 5.1"D (4.3 x 22.1 x 12.9 cm)
Weight	1.5 lb. (0.7 kg)
