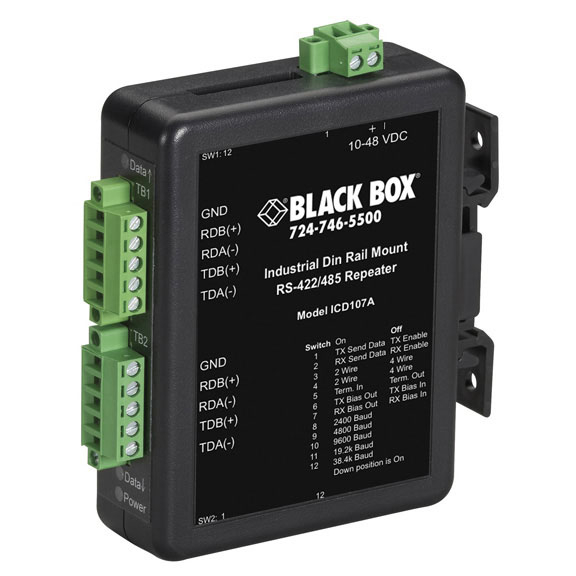

BlackBox ICD107A RS-422/RS-485 Industrial DIN Rail Repeater

Features:

• Isolates one RS485 device from the rest of an RS485 system or one local group of RS485 equipment from another.
• Connects point-to-point, RS422 4-wire equipment to an RS485 2-wire multidrop system.
• Can be used as a repeater to expand an RS485 system beyond 32 nodes.
• Operates 2-wire half-duplex or 4-wire half- or full-duplex.
• Features 12 user-selectable data rates up to 460.8 kbps.
• This compact device links RS422 4-wire and RS485 2-wire systems while using optical isolation to protect equipment and lines from damaging ground loops.
• Operates in harsh environments, withstanding temperatures of -40° to +185° F (-40° to +85° C).
• Adds 4000 feet (1219.2 m) and another 32 nodes to an RS-485 data circuit. By configuring one side as RS-422 and the other side as RS-485, it acts as a converter to enable a 4-wire RS-422 device to communicate with a 2-wire RS-485 device.
• Features 10-48-VDC operation and withstands temperature extremes.
• Modbus ASCII or RTU compatible.
• Automatic Send Data Control eliminates the need for driver software.
• Conveniently mount on optional DIN Rails.
