BlackBox, AVSC-VIDEO-HDMI, Component/Composite-to-HDMI Scaler & Converter with Audio

Component/Composite-to-HDMI Scaler and Converter with Audio. Convert older signal types to HDMI with embedded audio to use with HDMI displays.

This product includes:

(1) scaler/converter
(1) 5V, 2A power supply
(1) remote with batteries

Quick Facts

Supports a wide range of resolutions including 1920 x 1200, 480i/p, 576i/p, 720p, 1080i, and 1080p.
Compatible with all HDMI sinks, such as PC monitors, plasma HD displays, HDTVs, and audio/receivers/amplifiers.

Further Details

Power through either wallmount or USB.
Controlled through USB, OSD, or push buttons.
Supports intelligent color adjustment.

This Component/Composite-to-HDMI Scaler and Converter converts video with left-right analog audio or SPDIF digital audio to digital HDMI with embedded audio. With this module, Composite/Component based devices, such as gaming systems or a Blu-ray player with analog audio can readily connect to your HDMI TV or monitor.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Approvals	CE, RoHS2, WEEE, UL

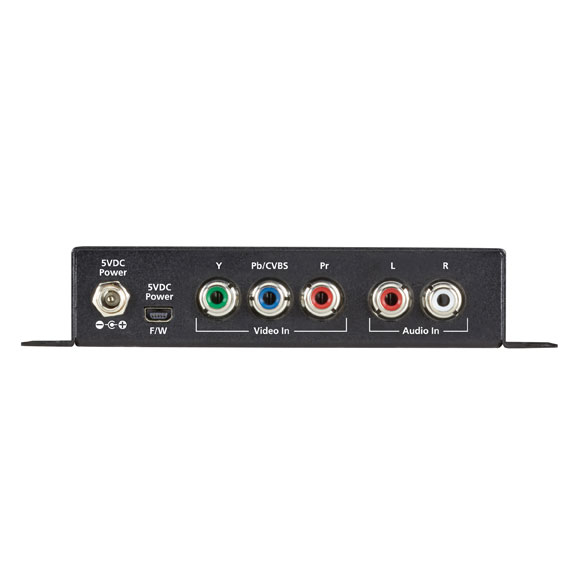

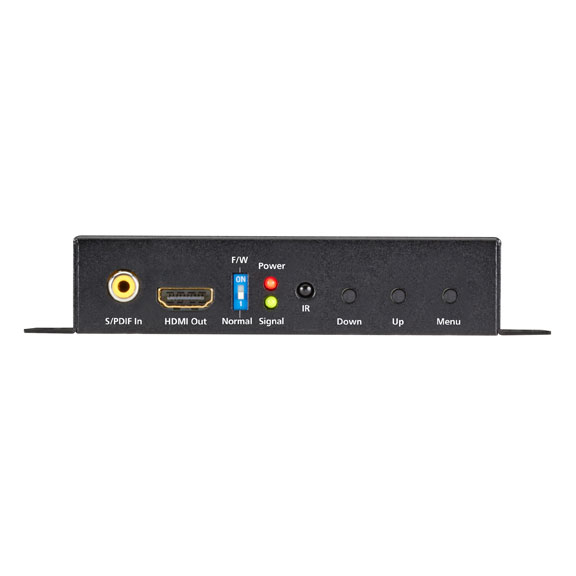

Connectors	(1) screw lock barrel power connector, (1) USB mini for power and FW upgrades; Input: (3) component video (one is used for composite), (2) 3.5-mm L/R audio, (1) SPDIF audio; Output: (1) HDMI video
Humidity	10% tp 90%, non-condensing
Maximum Altitude	10,000 feet
Operating Temperature	32° to 122° F (0 to 50°C)
Storage Temperature	40° to 158°F (-40 to 70°C)
Power	Source: wallmount style power supply, USB mini (not included); Input: 100-24- VAC, 50/60 Hz, 1.5 Amp; Output: 5 VDC 2A barrel plug
User Controls	(3) push buttons
Dimensions	1.1"H x 4.5"W x 3.3"D (2.8 x 11.4 x 8.4 cm)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Approvals	CE, RoHS2, WEEE, UL
Connectors	(1) screw lock barrel power connector, (1) USB mini for power and FW upgrades; Input: (3) component video (one is used for composite), (2) 3.5-mm L/R audio, (1) SPDIF audio; Output: (1) HDMI video
Humidity	10% tp 90%, non-condensing
Maximum Altitude	10,000 feet
Operating Temperature	32° to 122° F (0 to 50°C)
Storage Temperature	40° to 158°F (-40 to 70°C)
Power	Source: wallmount style power supply, USB mini (not included); Input: 100-24- VAC, 50/60 Hz, 1.5 Amp; Output: 5 VDC 2A barrel plug
User Controls	(3) push buttons
Dimensions	1.1"H x 4.5"W x 3.3"D (2.8 x 11.4 x 8.4 cm)
