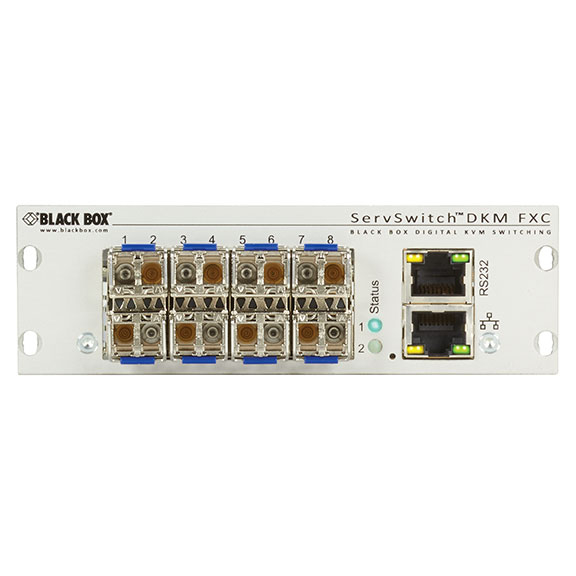

BlackBox, ACXC8F-M, DKM FXC Compact Card All-Fiber Matrix Switch with 8-Ports

Quick Facts

Instantaneous switching of HD video in a smaller model for space-conscious applications.
Mounts in the 6-slot (ACXMODH6R) or 21-slot (ACXMODH21R) chassis.

Further Details

Use the cost-efficient DKM FX Compact switches to establish connections from consoles (monitor, keyboard, mouse, and other peripheral devices) to various sources, such as computers and CPUs.
Fiber ports can be input or output.
Use with DKM Modular and Compact Extenders (ACX1MT and ACX1MR series, and ACX1T and ACX1R series) to extend video, KVM, and USB 2.0 signals.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resolution	DVI-D: Up to 2048 x 1152 at 60 Hz; up to 1280 x 1024 at 75Hz; up to 24-bit color depth VGA scalable up to 1920 x 1200
Distances (Maximum)	400 feet (140m) using solid conductor CATx cable; 200 feet (70m) using stranded conductor CATx cable; 32,800 feet (10,000m) using Single-mode 9µm fiber cable; 3,280 feet (1000m) using Multi-mode 50µm (OM3) cable; 1,300 feet (400m) using Multi-mode 50µm cable; 650 feet (200m) using Multi-mode 62.5µm cable
Connectors	(8) LC connections (1) IEC320 C14 power input (1) RJ-45 for network connections (1) RJ-45 for RS-232 (1) 2.5-mm connector for external control
Interface	DVI-D, DVI-I (VGA input), SDI SD, HD, SG, USB HID, USB 2.0 transparent, analog audio, digital audio, serial RS-232
Management	OSD, Java Tool, or Serial Interface
Power	Internal power supply, 88-264 VAC, 2 x 150 W, redundancy option
Dimensions	1.7"H x 8.75"W x 5.75" D (4.3 x 22 x 14.6 cm)
Weight	4 lb. (1.81 kg)

Resolution	DVI-D: Up to 2048 x 1152 at 60 Hz; up to 1280 x 1024 at 75Hz; up to 24-bit color depth VGA scalable up to 1920 x 1200
Distances (Maximum)	400 feet (140m) using solid conductor CATx cable; 200 feet (70m) using stranded conductor CATx cable; 32,800 feet (10,000m) using Single-mode 9µm fiber cable; 3,280 feet (1000m) using Multi-mode 50µm (OM3) cable; 1,300 feet (400m) using Multi-mode 50µm cable; 650 feet (200m) using Multi-mode 62.5µm cable
Connectors	(8) LC connections (1) IEC320 C14 power input (1) RJ-45 for network connections (1) RJ-45 for RS-232 (1) 2.5-mm connector for external control
Interface	DVI-D, DVI-I (VGA input), SDI SD, HD, SG, USB HID, USB 2.0 transparent, analog audio, digital audio, serial RS-232
Management	OSD, Java Tool, or Serial Interface
Power	Internal power supply, 88-264 VAC, 2 x 150 W, redundancy option
Dimensions	1.7"H x 8.75"W x 5.75" D (4.3 x 22 x 14.6 cm)
Weight	4 lb. (1.81 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
