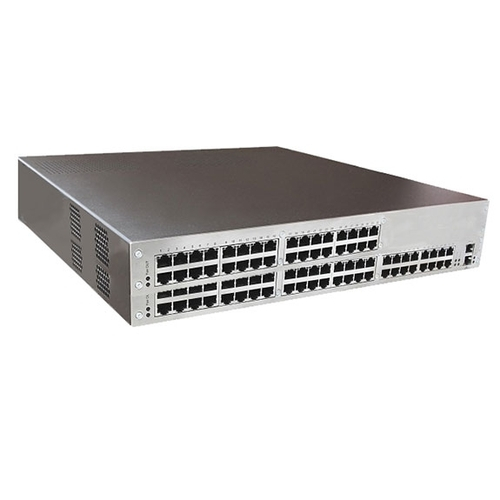

BlackBox ACXC80 DKM FX Compact Matrix Switch

Black Box, ACXC80, DKM FX Compact HD Video & Peripheral Matrix Switch with 80-Port CATx Chassis

Instantaneous switching of HD video and peripherals in a smaller model for space-conscious organizations.

Quick Facts

• Use the cost-efficient DKM FX Compact switches to establish connections from consoles (monitor, keyboard, mouse, and other peripheral devices) to various sources, such as computers and CPUs.
• RJ-45 CATx ports can be input or output.
• Chassis is 2U for easy mounting in server cabinet and racks.

Further Details

• Use with DKM Modular and Compact Extenders (ACX1MT and ACX1MR series, and ACX1T and ACX1R series) to extend video, KVM, and USB 2.0 signals.
• Can also be run as a video matrix switch.
• Uses CATx cabling for extension.
• DKM FX Compact HD Video and Peripheral Matrix Switches serve as repeaters, which mean they can be a maximum distance of 460 feet (140 m) from consoles or sources.
• Redundant power supplies included.
• Optional software bundles for external control, SYSLOG/SNMP, seamless cascading, etc. - one-time license purchase is good for the life of the switch.
